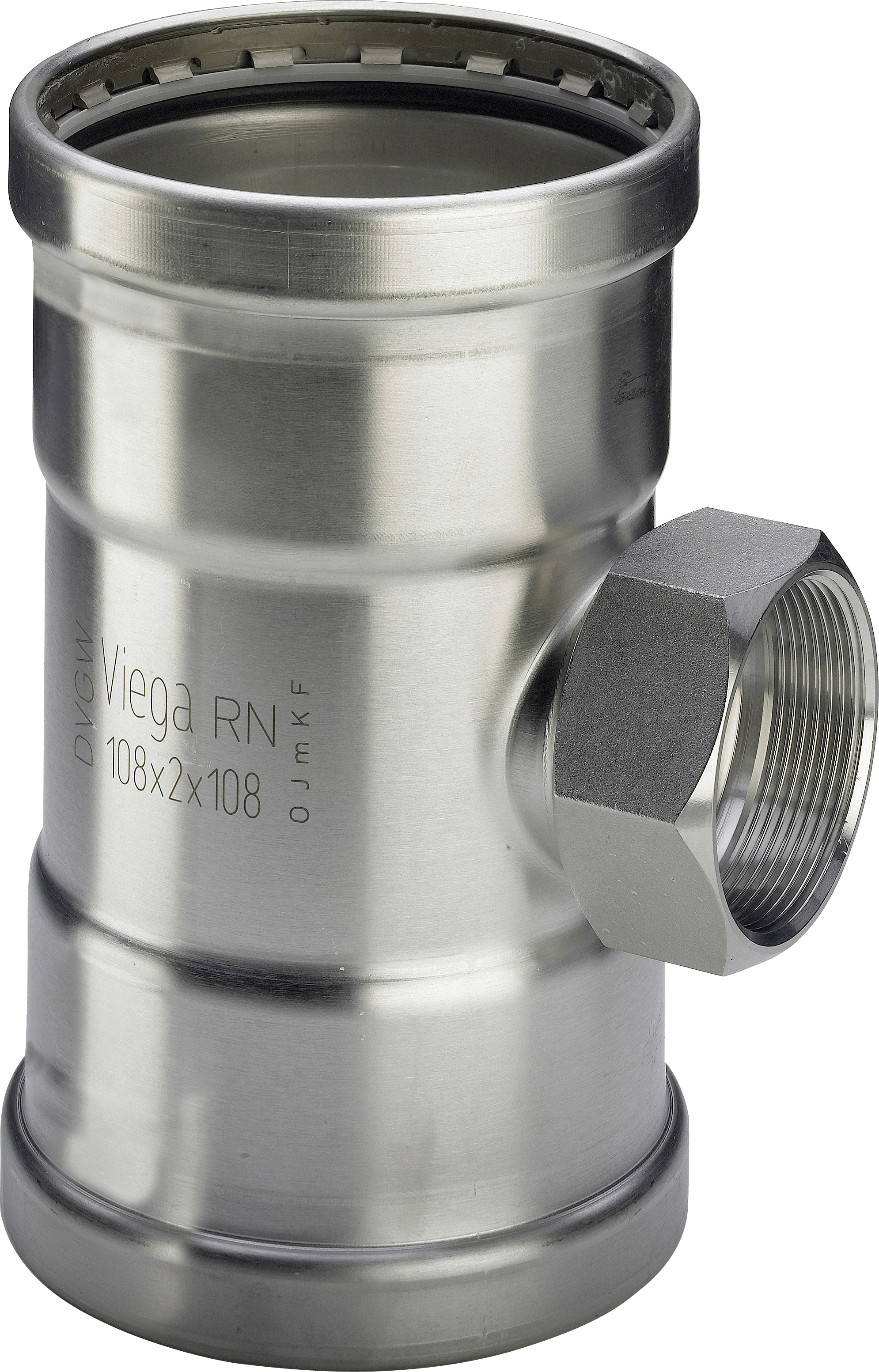

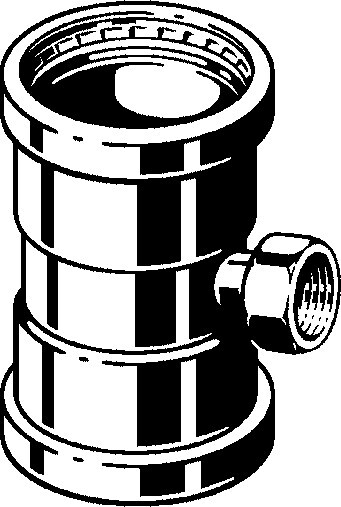

PRESS T-PIECE FT SS 108x2x108 VIEGA
Product code
1283965
V-profile system for domestic and industrial water systems, featuring SC-Contur property that enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 304 (1.4301)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 304 (1.4301)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
Material connection 3Stainless steel
Material quality connection 3Stainless steel 316 (1.4401)
ModelT-piece
Multi-partyes
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 1108 mm
Product codes
SAPCBI281
HPAC1283965
PLC1283965
GTIN/EAN4015211482916
Manufacturer part number482916
Vendor material number482916
Basic information
Package measurements (L x W x H)254 x 116 x 220 mm
Package volume6.482 l
Package weight1.122 kg
Base uniteach
Package units1 / 2
Package contents–
UNSPSC40172607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)17.391
GWP, uniteach
Source for GWP dataEPD
