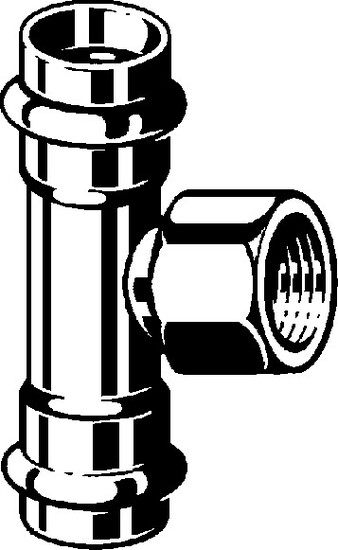

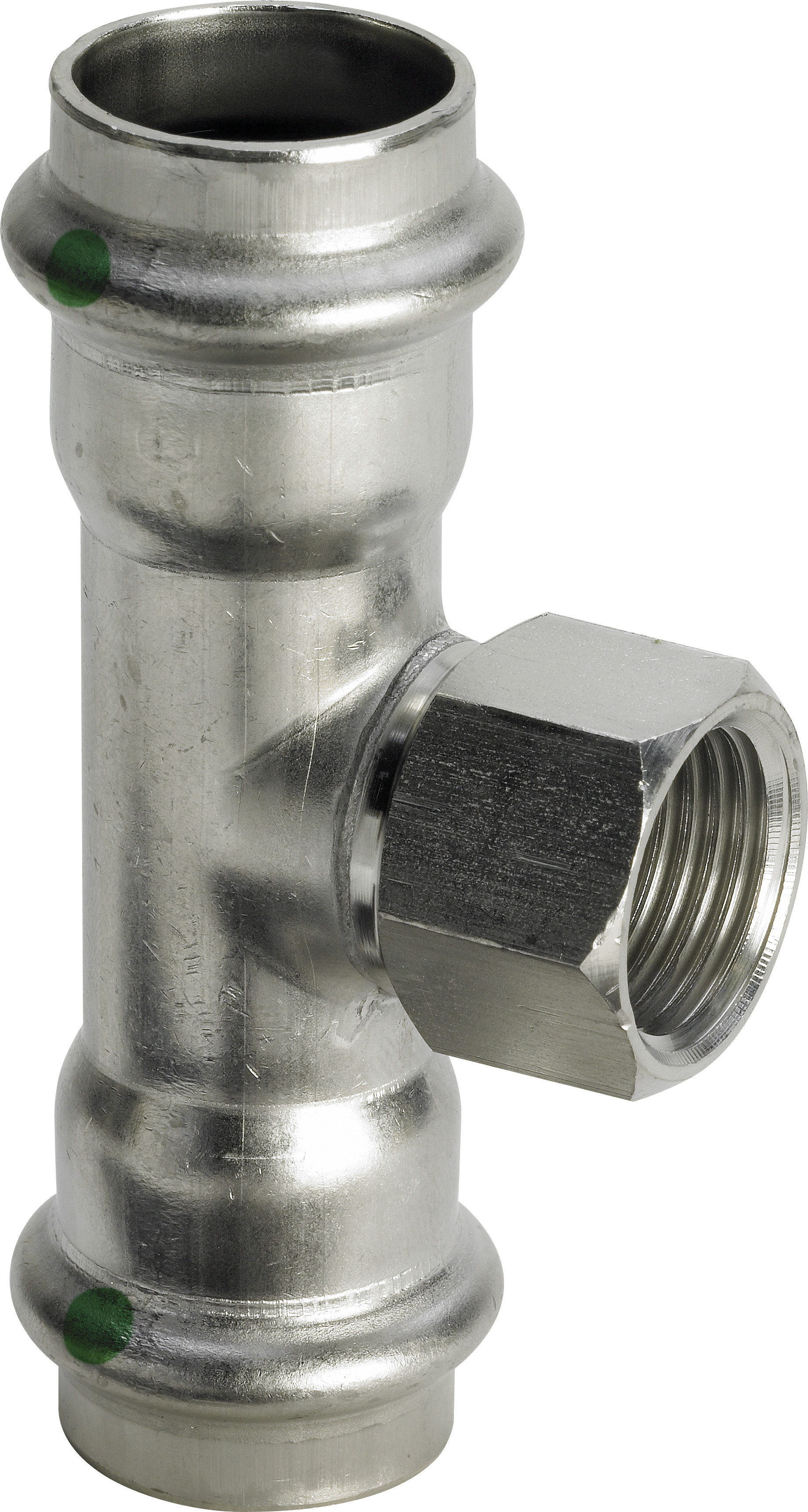

PRESS T-PIECE FT SS 28X1/2X28 VIEGA
Product code
1283923
V-profile system for domestic water and industrial applications. Fittings feature the SC-Contur property, which enables detection of leaks in a non-pressurized connection during a pressure test. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Stainless steel
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
Material connection 3Stainless steel
Material quality connection 3Stainless steel 316 (1.4401)
ModelT-piece
Multi-partno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 128 mm
Product codes
SAPAPK461
HPAC1283923
PLC1283923
GTIN/EAN4015211437190
Manufacturer part number437190
Vendor material number437190
Basic information
Package measurements (L x W x H)90 x 55 x 37 mm
Package volume0.183 l
Package weight0.131 kg
Base uniteach
Package units1 / 5 / 30
Package contents–
UNSPSC40174607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.0305
GWP, uniteach
Source for GWP dataEPD
