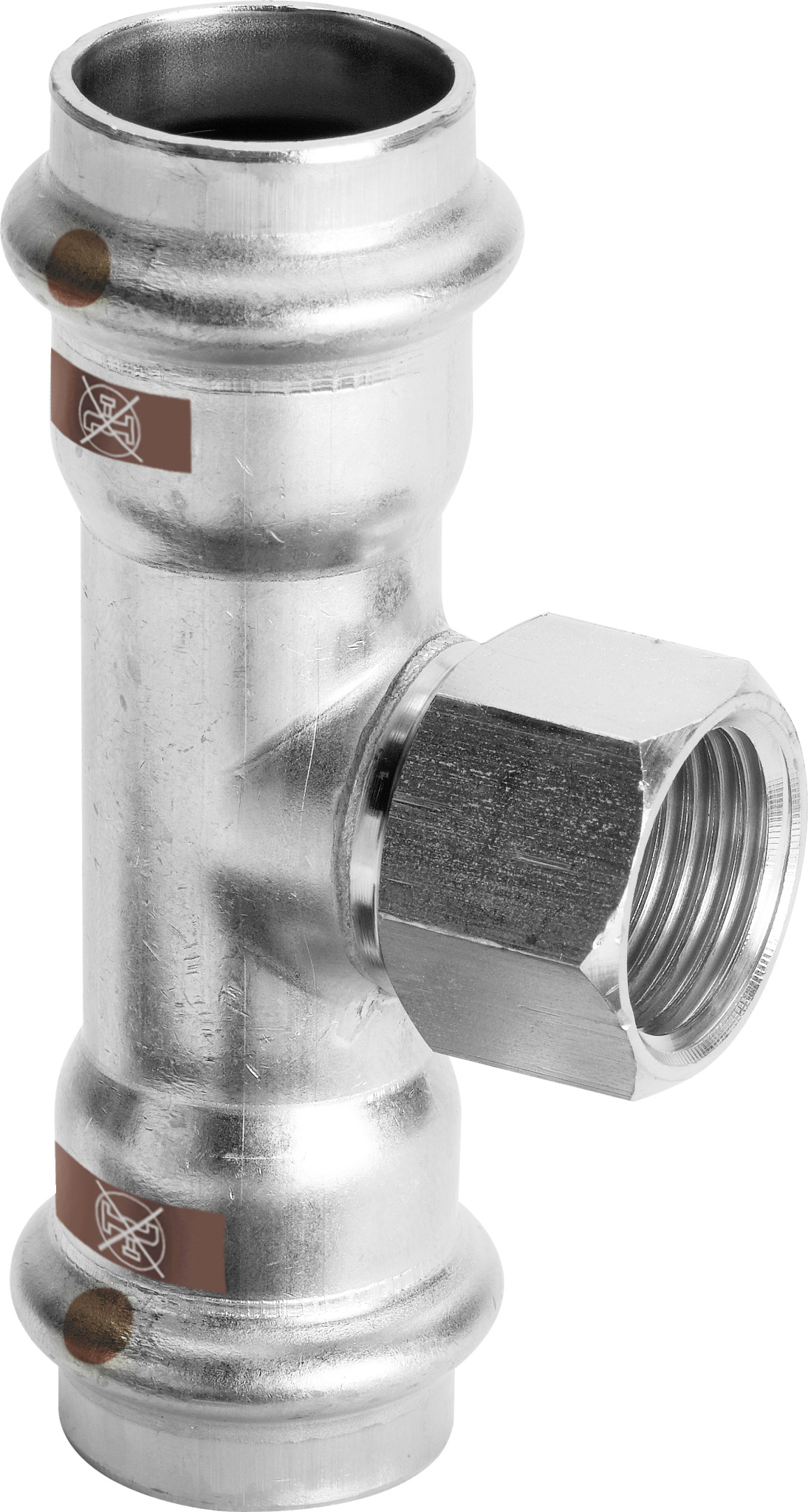

PRESS T-PIECE FT SS 28x1x28 VIEGA
Product code
1272603
V-profile system for heating, industrial, and compressed air systems. Pipes are manufactured from stainless steel 1.4520 and fittings from stainless steel 1.4301. The fittings feature the SC-Contur property, which immediately detects any unpressed connections during pressure testing, preventing hidden leak risks in the building. EPDM O-ring, max. +110°C, pressure class PN16. Not for use with drinking water! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Stainless steel
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ModelT-piece
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 128 mm
Connection 1Press sleeve
Contour code connection 1Other
Nominal diameter connection 2Other
Product codes
SAPCZU471
HPAC1272603
PLC1272603
GTIN/EAN4015211809072
Manufacturer part number809072
Vendor material number809072
Basic information
Package measurements (L x W x H)104 x 36 x 59 mm
Package volume0.221 l
Package weight0.034 kg
Base uniteach
Package units5 / 50 / 1700
Package contents–
UNSPSC40172607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.2944
GWP, uniteach
Source for GWP dataEPD
