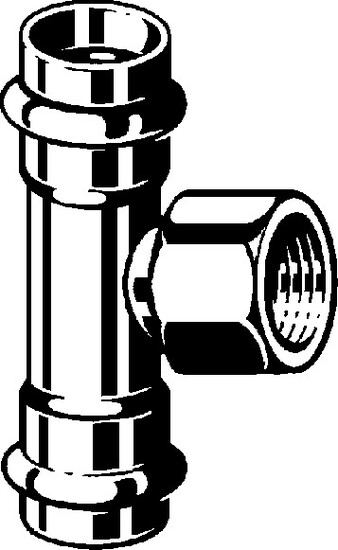

PRESS T-PIECE FT SS 42X1/2X42 VIEGA
Product code
1283937
V-profile system for domestic water and industrial applications. Fittings feature the SC-Contur property, which enables detection of leaks in a non-pressurized connection during a pressure test. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Stainless steel
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
Material connection 3Stainless steel
Material quality connection 3Stainless steel 316 (1.4401)
ModelT-piece
Multi-partno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 142 mm
Product codes
SAPAPK464
HPAC1283937
PLC1283937
GTIN/EAN4015211437220
Manufacturer part number437220
Vendor material number437220
Basic information
Package measurements (L x W x H)112 x 70 x 55 mm
Package volume0.431 l
Package weight0.257 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC40174607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.9835
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
