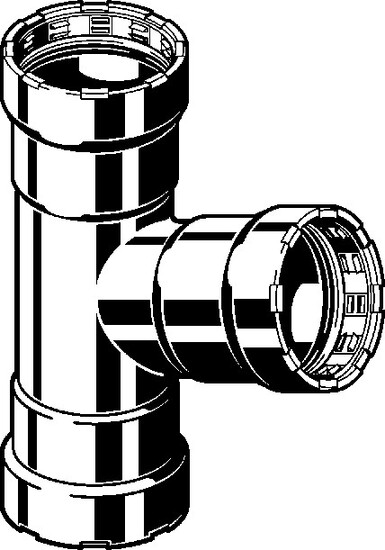

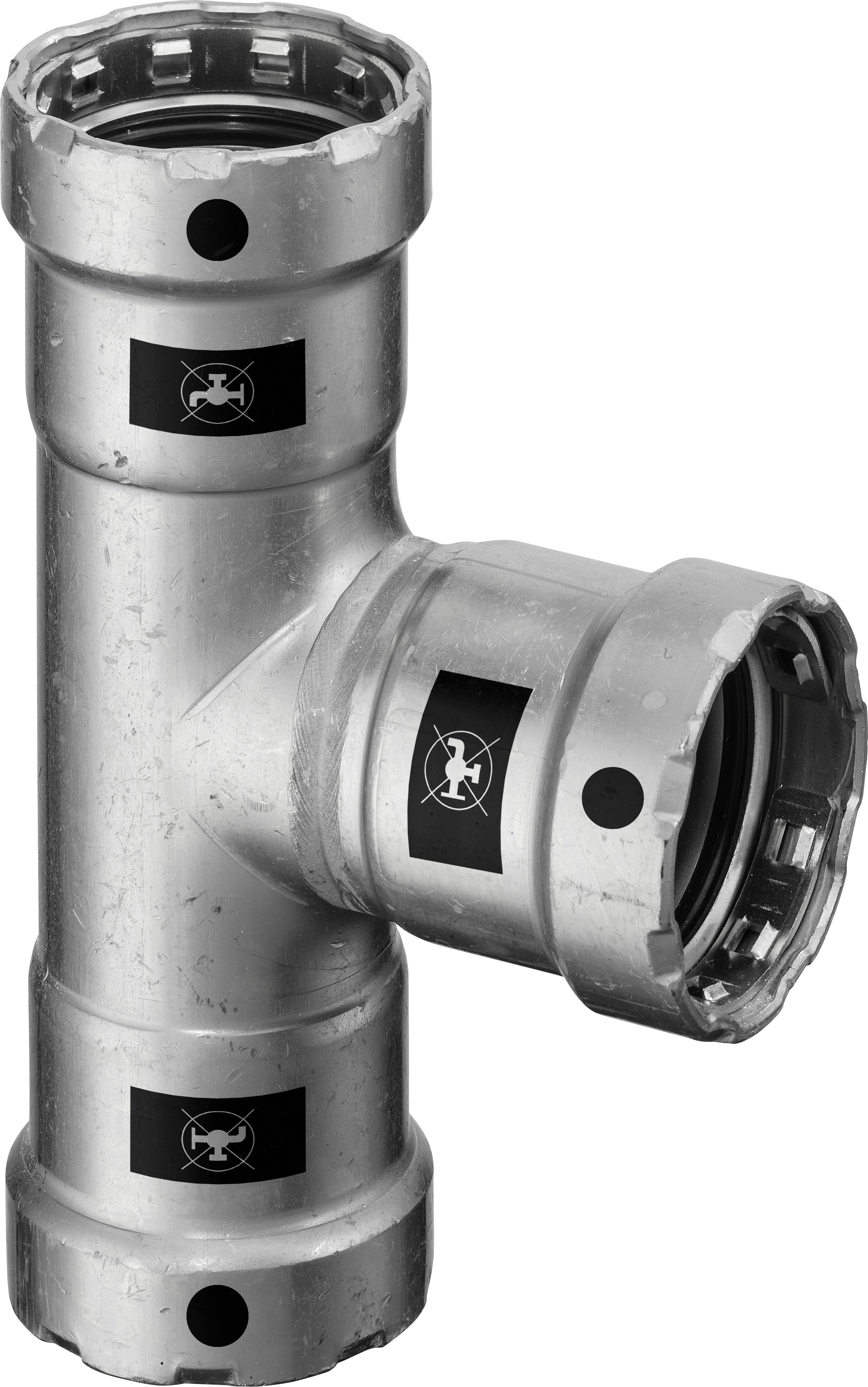

PRESS T-PIECE REDUCER 4218 DN32x20x32 MEGAPRESS
Product code
0760030
The Megapress system is suitable for installation in heating, cooling, and industrial systems together with steel pipes in accordance with DIN EN 10225 and DIN EN 10220.
Features- Not suitable for use in potable water systems or for flammable gases according to DVGW G260.
- Megapress fittings may only be used together with components belonging to the system.
- Compression fittings have a leak indicator, causing clearly visible leaks if the connection is not compressed.
- Maximum operating temperature and pressure class in water circuits is 110 °C at 16 bar.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Steel
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Galvanic/electrolytic zinc plated
Surface treatment connection 1Other
Material connection 2Steel
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Galvanic/electrolytic zinc plated
Surface treatment connection 2Other
Material connection 3Steel
Material quality connection 3St 34.2 (1.0034)
Surface protection connection 3Galvanic/electrolytic zinc plated
ModelT-piece
Multi-partno
System specificyes
Nominal diameter connection 11 1/2 inch (40)
Product codes
SAPATD044
HPAC0760030
PLC0760030
GTIN/EAN4015211695057
Manufacturer part number695057
Vendor material number695057
Basic information
Package measurements (L x W x H)104 x 28 x 30 mm
Package volume0.087 l
Package weight0.061 kg
Base uniteach
Package units10
Package contents–
UNSPSC40172602
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (10)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.5905
GWP, uniteach
Source for GWP dataEPD
