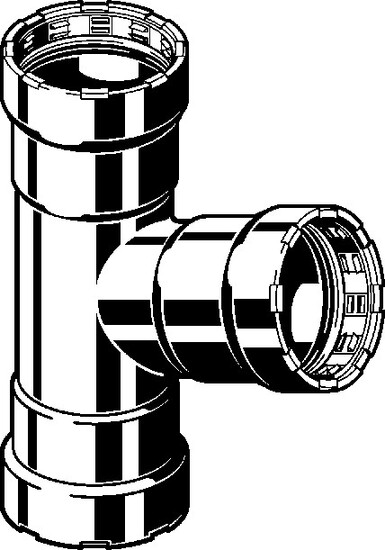

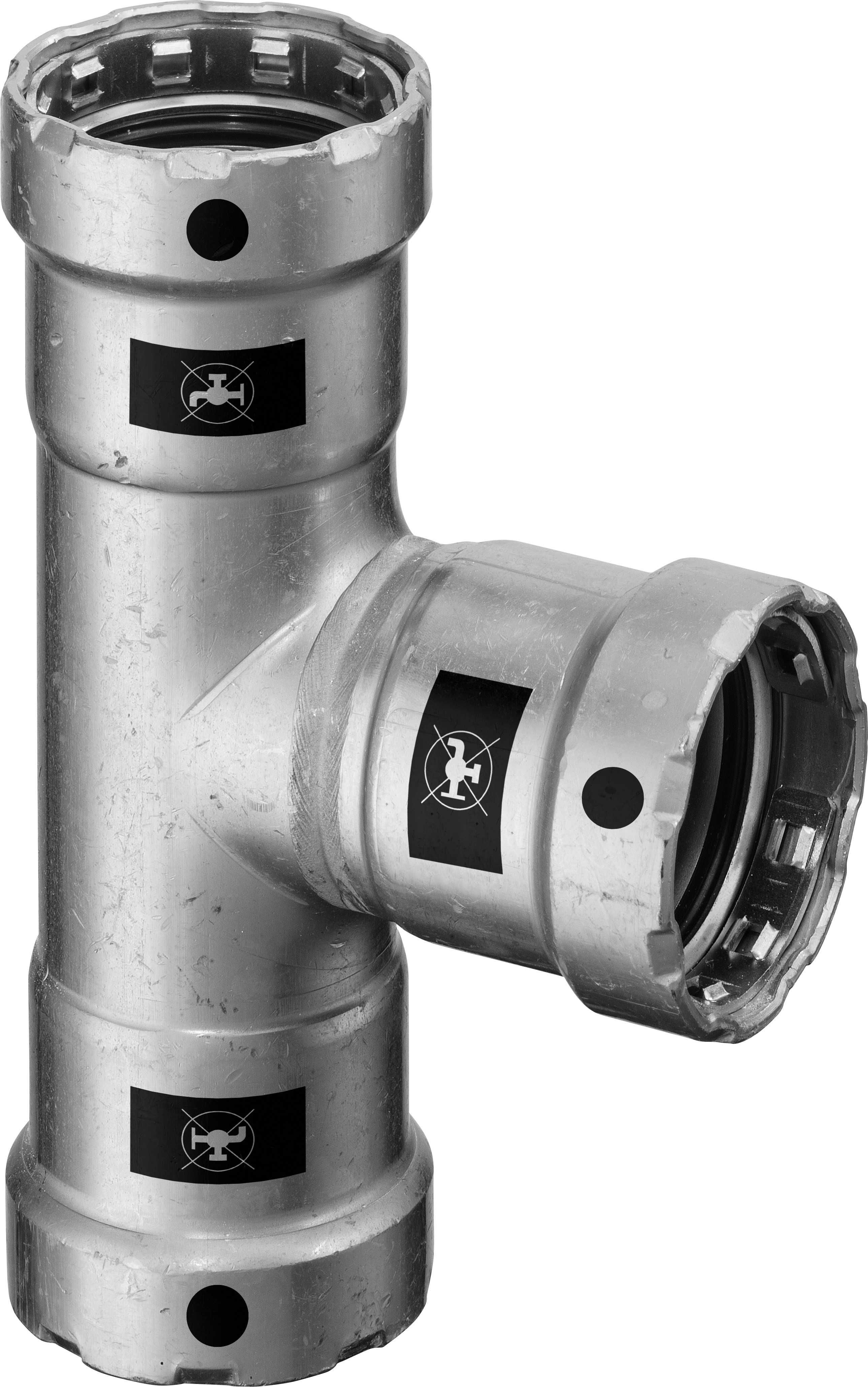

PRESS T-PIECE REDUCER 4218 DN40x20x40 MEGAPRESS
Product code
0760034
The Megapress system is suitable for installation in heating, cooling, and industrial systems together with steel pipes in accordance with DIN EN 10225 and DIN EN 10220.
Features- Not suitable for use in potable water systems or for flammable gases according to DVGW G260.
- Megapress fittings may only be used together with components belonging to the system.
- Compression fittings have a leak indicator, causing clearly visible leaks if the connection is not compressed.
- Maximum operating temperature and pressure class in water circuits is 110 °C at 16 bar.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Steel
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Galvanic/electrolytic zinc plated
Surface treatment connection 1Other
Material connection 2Steel
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Galvanic/electrolytic zinc plated
Surface treatment connection 2Other
Material connection 3Steel
Material quality connection 3St 34.2 (1.0034)
Surface protection connection 3Galvanic/electrolytic zinc plated
ModelT-piece
Multi-partno
System specificyes
Nominal diameter connection 11 1/2 inch (40)
Product codes
SAPATD048
HPAC0760034
PLC0760034
GTIN/EAN4015211695071
Manufacturer part number695071
Vendor material number695071
Basic information
Package measurements (L x W x H)162 x 55 x 58 mm
Package volume0.516 l
Package weight1.91 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172602
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (10)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)18.4888
GWP, uniteach
Source for GWP dataEPD
