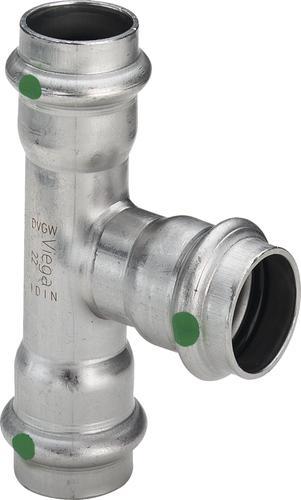

PRESS T-PIECE REDUCER SS 35X22X35 VIEGA
Product code
1283444
V-profile system for domestic water and industrial applications. Fittings feature the SC-Contur property, which enables detection of leaks in a non-pressurized connection during a pressure test. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Stainless steel
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
Material connection 3Stainless steel
Material quality connection 3Stainless steel 316 (1.4401)
ModelT-piece
Multi-partno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 135 mm
Product codes
SAPAPK446
HPAC1283444
PLC1283444
GTIN/EAN4015211436001
Manufacturer part number436001
Vendor material number436001
Basic information
Package measurements (L x W x H)90 x 80 x 45 mm
Package volume0.324 l
Package weight0.173 kg
Base uniteach
Package units1 / 5 / 20
Package contents–
UNSPSC40172507
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.6815
GWP, uniteach
Source for GWP dataEPD
