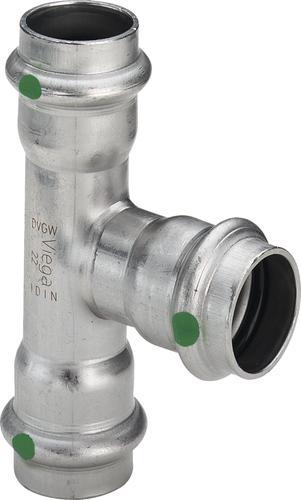

PRESS T-PIECE REDUCER SS 54X28X54 VIEGA
Product code
1283463
V-profile system for domestic and industrial water systems, featuring SC-Contur property that enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Stainless steel
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
Material connection 3Stainless steel
Material quality connection 3Stainless steel 316 (1.4401)
ModelT-piece
Multi-partno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 154 mm
Product codes
SAPAPK452
HPAC1283463
PLC1283463
GTIN/EAN4015211436056
Manufacturer part number436056
Vendor material number436056
Basic information
Package measurements (L x W x H)122 x 95 x 62 mm
Package volume0.719 l
Package weight0.36 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.58
GWP, uniteach
Source for GWP dataEPD
