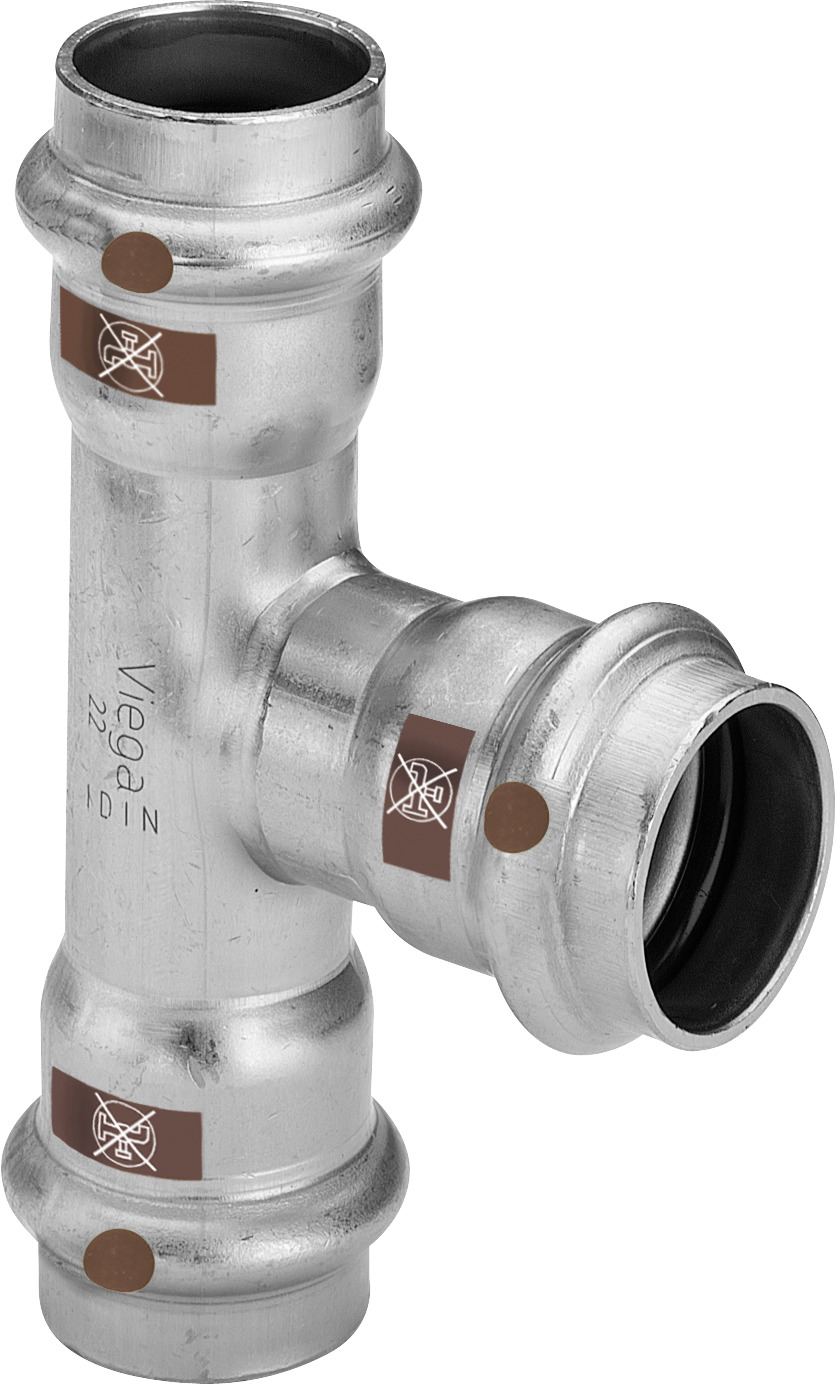

PRESS T-PIECE SS 35 VIEGA
Product code
1272565
V-profile system for heating, industrial, and compressed air systems. Pipes are manufactured from stainless steel 1.4520 and fittings from stainless steel 1.4301. The fittings feature the SC-Contur property, which immediately detects any unpressed connections during pressure testing, preventing hidden leak risks in the building. EPDM O-ring, max. +110°C, pressure class PN16. Not for use with drinking water! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 304 (1.4301)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 304 (1.4301)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
Material connection 3Steel
Material quality connection 3Stainless steel 304 (1.4301)
Surface protection connection 3Galvanic/electrolytic zinc plated
Surface treatment connection 3Untreated
ModelT-piece
Swept entry type (with inner radius)no
Multi-partno
Product codes
SAPCZU414
HPAC1272565
PLC1272565
GTIN/EAN4015211810160
Manufacturer part number810160
Vendor material number810160
Basic information
Package measurements (L x W x H)105 x 77 x 45 mm
Package volume0.364 l
Package weight0.038 kg
Base uniteach
Package units1 / 5 / 5 / 25 / 1700
Package contents–
UNSPSC40174607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.3291
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
