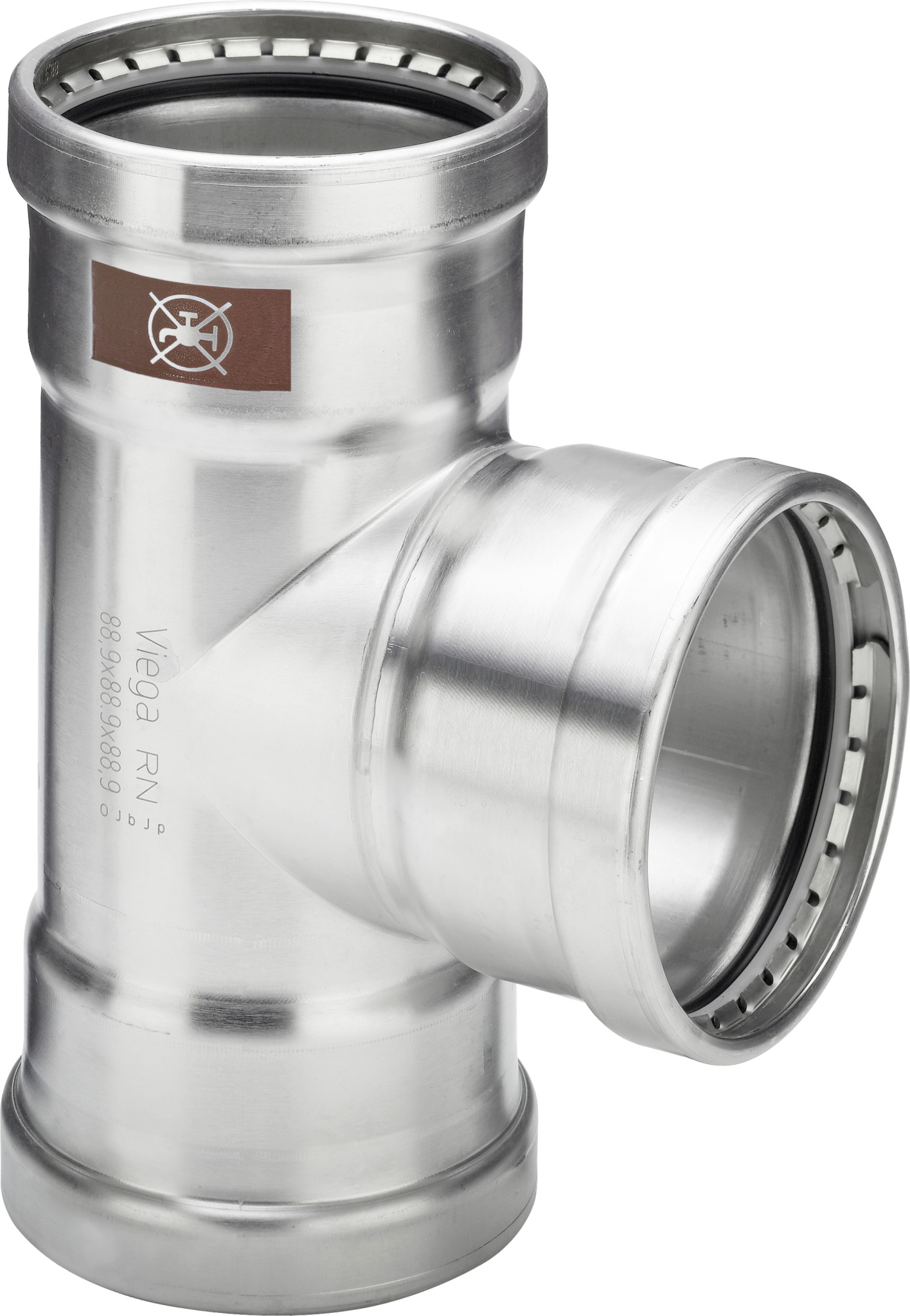

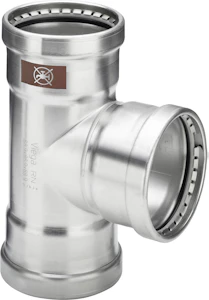

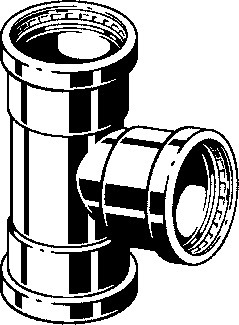

PRESS T-PIECE SS 76,1 VIEGA
Product code
1272583
V-profile system for heating, industrial, and compressed air systems. Pipes are manufactured from stainless steel 1.4520 and fittings from stainless steel 1.4301. The fittings feature the SC-Contur property, which immediately detects any unpressed connections during pressure testing, preventing hidden leak risks in the building. EPDM O-ring, max. +110°C, pressure class PN16. Not for use with drinking water! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Stainless steel
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ModelT-piece
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 176.1 mm
Connection 1Press sleeve
Contour code connection 1Other
Nominal diameter connection 2Other
Product codes
SAPCZU417
HPAC1272583
PLC1272583
GTIN/EAN4015211810207
Manufacturer part number810207
Vendor material number810207
Basic information
Package measurements (L x W x H)202 x 90 x 150 mm
Package volume2.727 l
Package weight1.16 kg
Base uniteach
Package units1 / 3 / 220
Package contents–
UNSPSC40174607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)10.0456
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
