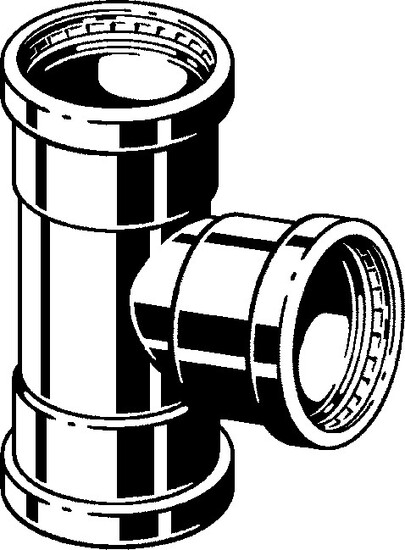

PRESS T-PIECE ZN 64 VIEGA
Product code
0484088
V-profile system for industrial and heating equipment use, not suitable for drinking water systems. Connections feature the SC-Contur property, which enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Zinc
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Galvanic/electrolytic zinc plated
Surface treatment connection 1Untreated
Material connection 2Zinc
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Galvanic/electrolytic zinc plated
Surface treatment connection 2Untreated
Material connection 3Zinc
Material quality connection 3St 34.2 (1.0034)
Surface protection connection 3Galvanic/electrolytic zinc plated
ModelT-piece
Multi-partno
System specificyes
Nominal diameter connection 1Other
Product codes
SAPANB153
HPAC0484088
PLC0484088
GTIN/EAN4015211597801
Manufacturer part number597801
Vendor material number597801
Basic information
Package measurements (L x W x H)179 x 131 x 80 mm
Package volume1.876 l
Package weight0.84 kg
Base uniteach
Package units1 / 4
Package contents–
UNSPSC40172314
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.418
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
