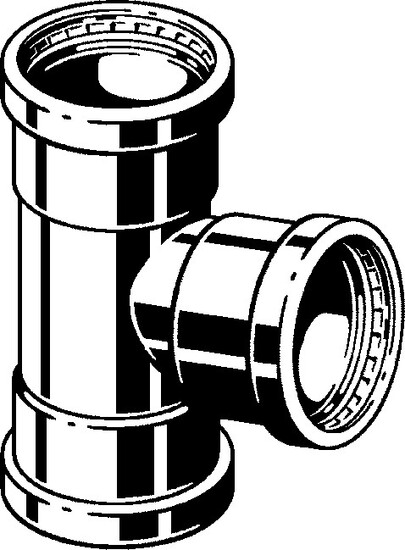

PRESS T-PIECE ZN 76,1 VIEGA
Product code
0484089
V-profile system for industrial and heating equipment use, not suitable for drinking water systems. Connections feature the SC-Contur property, which enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Zinc
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Galvanic/electrolytic zinc plated
Surface treatment connection 1Untreated
Material connection 2Zinc
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Galvanic/electrolytic zinc plated
Surface treatment connection 2Untreated
Material connection 3Zinc
Material quality connection 3St 34.2 (1.0034)
Surface protection connection 3Galvanic/electrolytic zinc plated
ModelT-piece
Multi-partno
System specificyes
Nominal diameter connection 1Other
Product codes
SAPANB154
HPAC0484089
PLC0484089
GTIN/EAN4015211597818
Manufacturer part number597818
Vendor material number597818
Basic information
Package measurements (L x W x H)200 x 150 x 90 mm
Package volume2.7 l
Package weight1.11 kg
Base uniteach
Package units1 / 2
Package contents–
UNSPSC40172314
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)7.1595
GWP, uniteach
Source for GWP dataEPD
