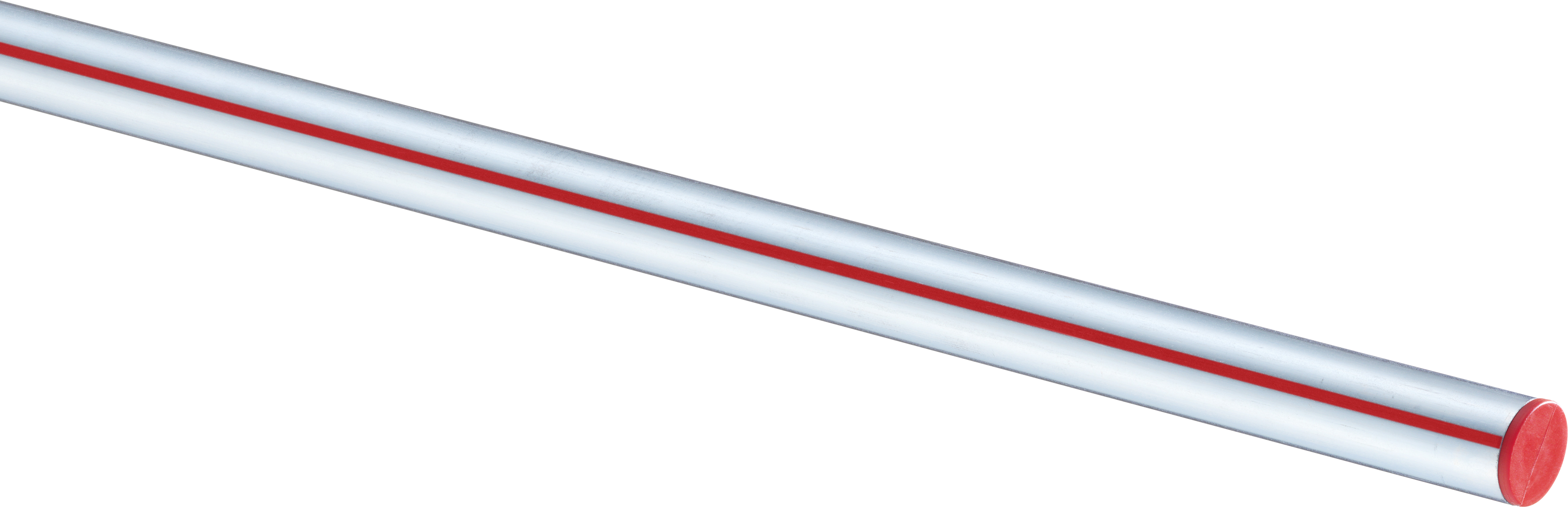

PRESS STEELPIPE ZN 22x1,5x6000 VIEGA

Product code
0478403
V-profile system for industrial and heating equipment applications "not suitable for drinking water systems". Pipe made of untreated steel, zinc-coated on the outside. Fittings include the SC-Contur feature, which allows leakage of a non-compressed connection to be detected during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Thin-walled steel pipe (EC010032)
MaterialSteel
Material qualitySt 35 (1.0308)
Seamlessno
Outer pipe diameter22 mm
Wall thickness1.5 mm
Surface protectionGalvanic/electrolytic zinc plated

Product codes

SAPANA932
HPAC0478403
PLC0478403
GTIN/EAN4015211559465
Manufacturer part number559465
Vendor material number559465

Basic information

Package measurements (L x W x H)1000 x 22 x 22 mm
Package volume0.484 l
Package weight0.76 kg
Base unitMeter
Package units6 / 60 / 420
Package contents
UNSPSC40141911
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)4.0107
GWP, unitMeter
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameViega GmbH & Co. KG
Postal addressViega Platz 1, 57439 Attendorn Germany
