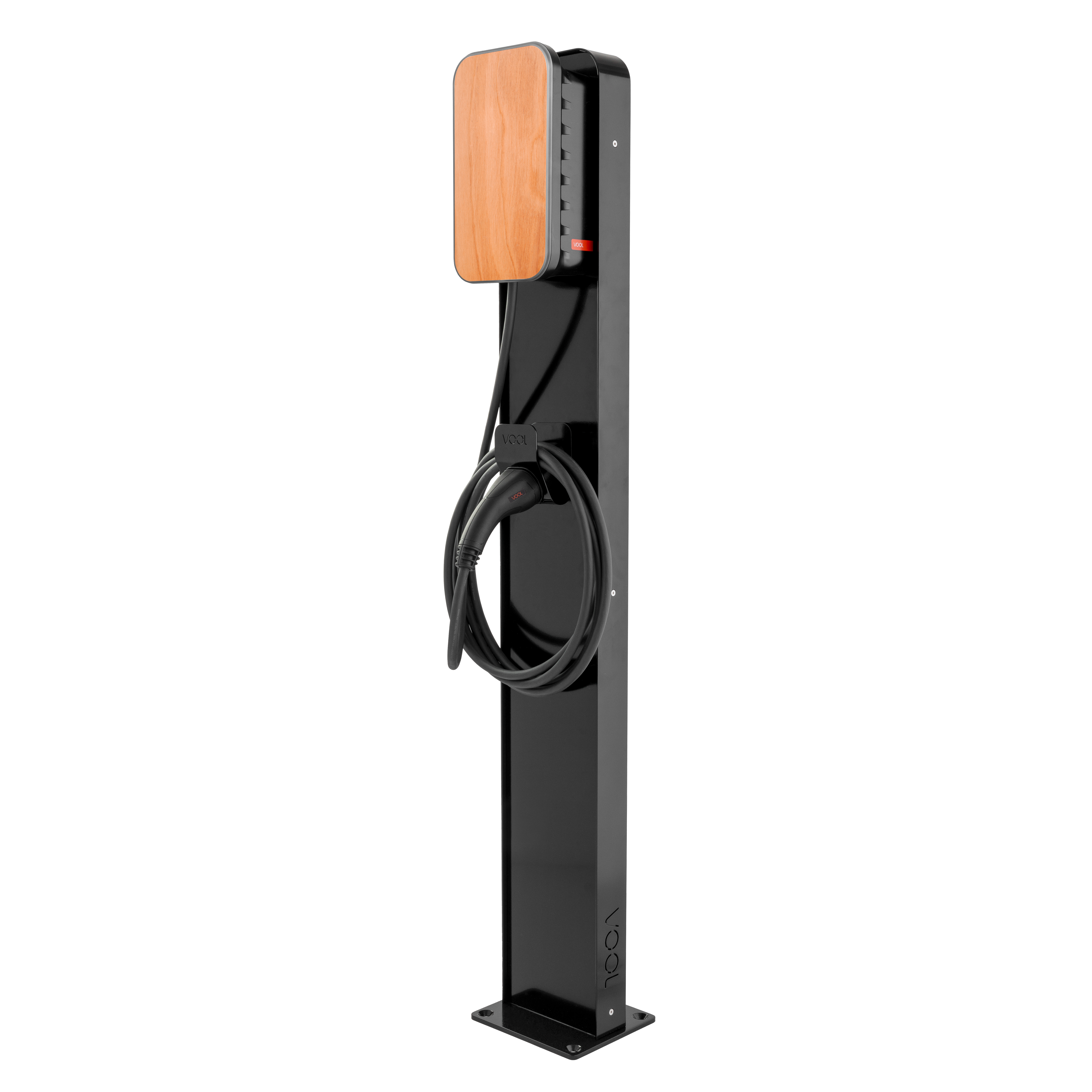

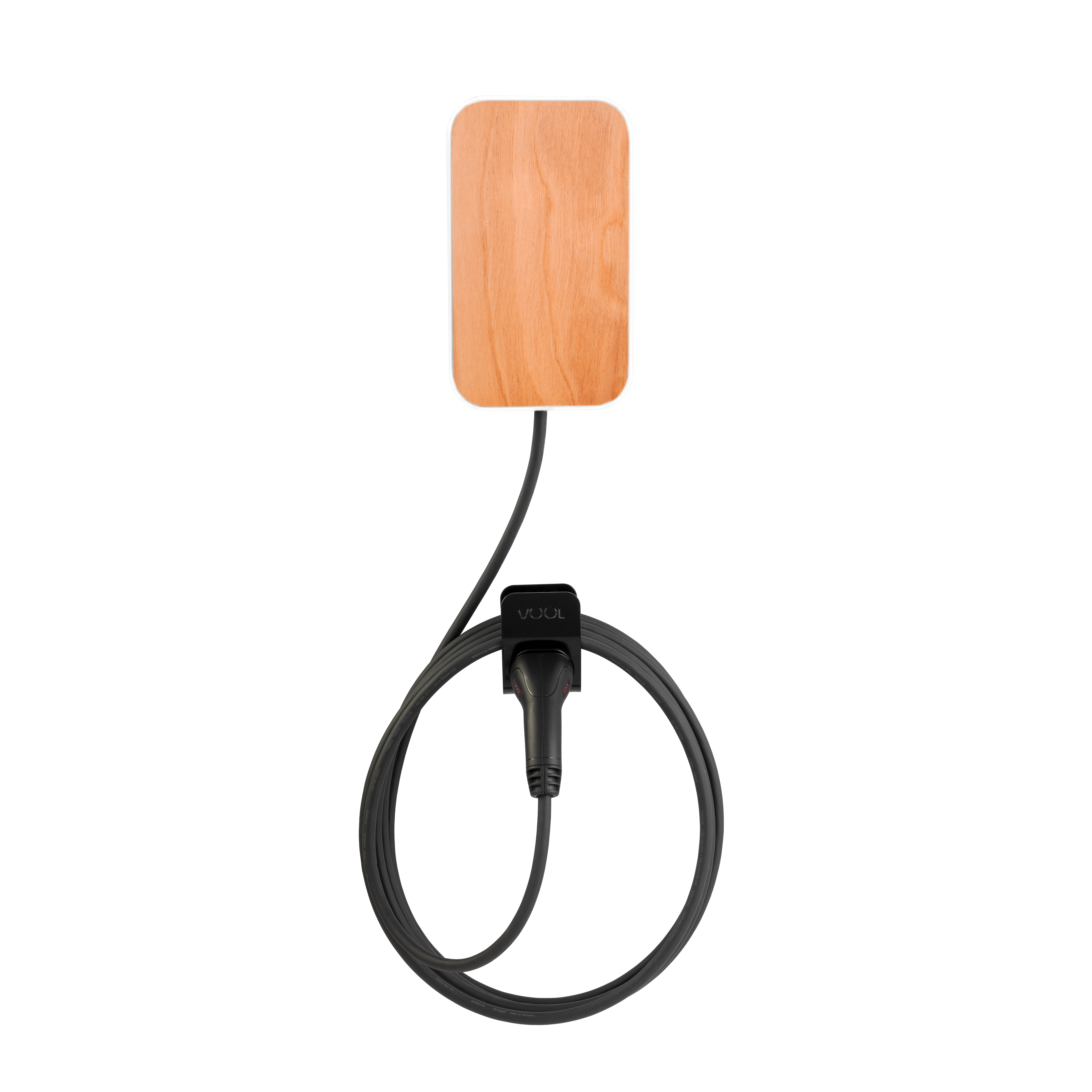

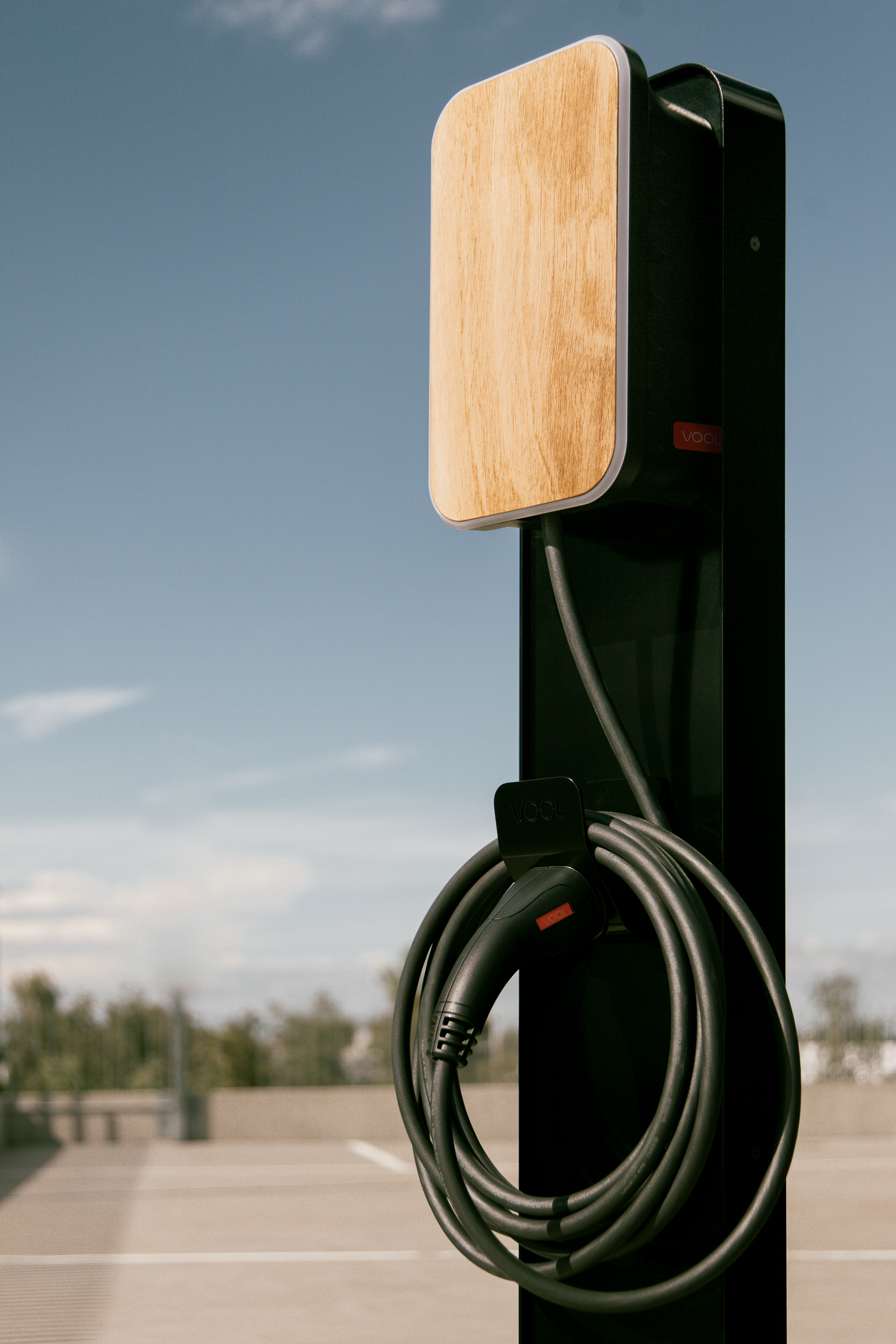

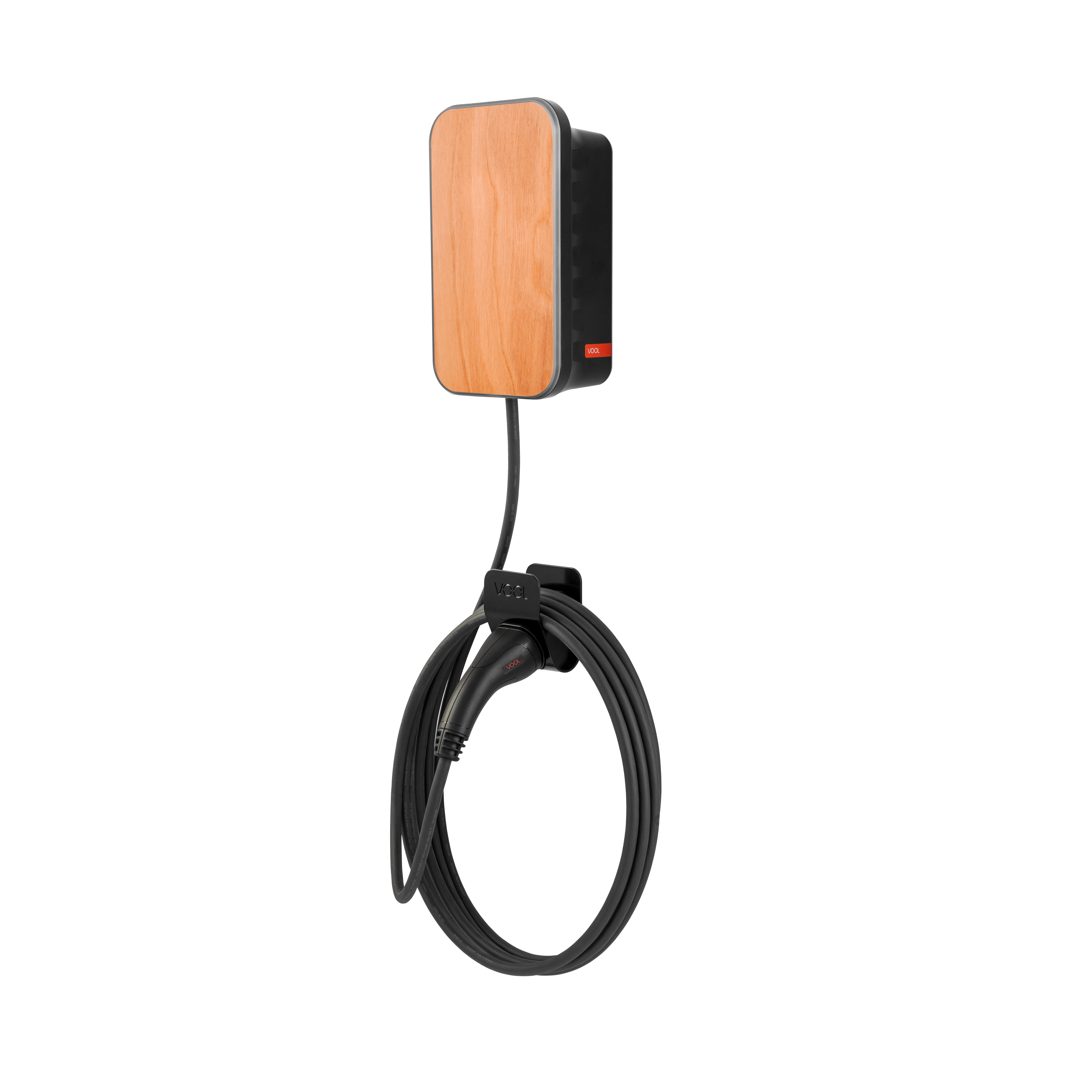

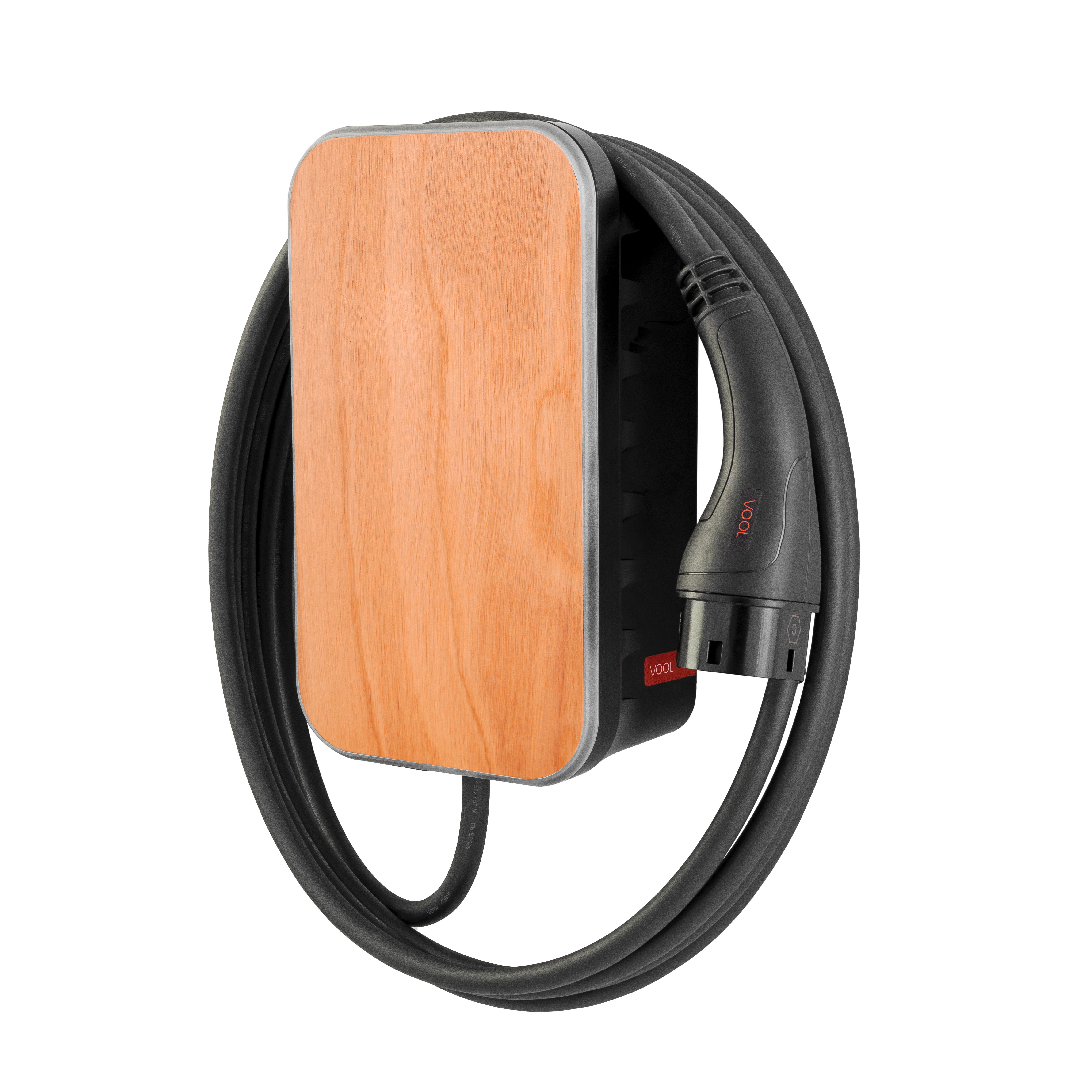

RECHARGING STATION WOOD 3F 32A 22kW T2 6,5M CABLE

Product code
3509303
The VOOL charger is stylishly designed and packed with intelligent features. It supports all electrical installations, from single-phase 6A/1.4kW up to three-phase 32A/22kW. The charger comes with a fixed 6.5-meter Type 2 cable and a wide range of connectivity options, including 4G (eSIM), Wi-Fi, two Ethernet ports, and Bluetooth. VOOL integrates seamlessly with Nordpool and vehicle smart charging, enabling charging during the most cost-effective hours. Additionally, VOOL supports solar energy integration. Installers can configure all VOOL devices using the Installer App, which simplifies transferring settings to the end user. Through the VOOL portal, users can manage sites, devices, users, vehicles, and costs, and even make chargers publicly accessible. The VOOL Load Management Controller (VOOL LMC) enables up to three times more efficient use of the existing electrical grid through seamless and uninterrupted phase switching. VOOL LMC is designed for multi-point and multi-level load management, enabling the creation of large-scale charging systems. The VOOL charger features built-in DC fault protection. The device is rated IP55 and IK10 for durability and protection. 5-year warranty. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Charging device for electric vehicles (EC002883)
Installation side connection model3-phase
Frequency50 Hz
Nominal connection power22 kW
Max. output current DC32 A
Number of charging units1
Max. power per charging point22 kW
Width198 mm
Height335 mm
Depth112 mm
Number of vehicle connectors Type 10
Number of vehicle connectors Type 21
Number of socket outlets Type 20
Number of socket outlets Type 30
With house connection boxyes
Length of charging cable6.5 m

Product codes

SAPDEP297
STK3509303
PLC3509303
GTIN/EAN4745010605048
Manufacturer part numberV22TWGGP
Vendor material numberV22TWGGP

Basic information

Package measurements (L x W x H)331 x 198 x 111 mm
Package volume7.275 l
Package weight4 kg
Base uniteach
Package units1 / 48
Package contents
UNSPSC25175002
BrandVOOL
VendorMULTICHARGE OÜ
