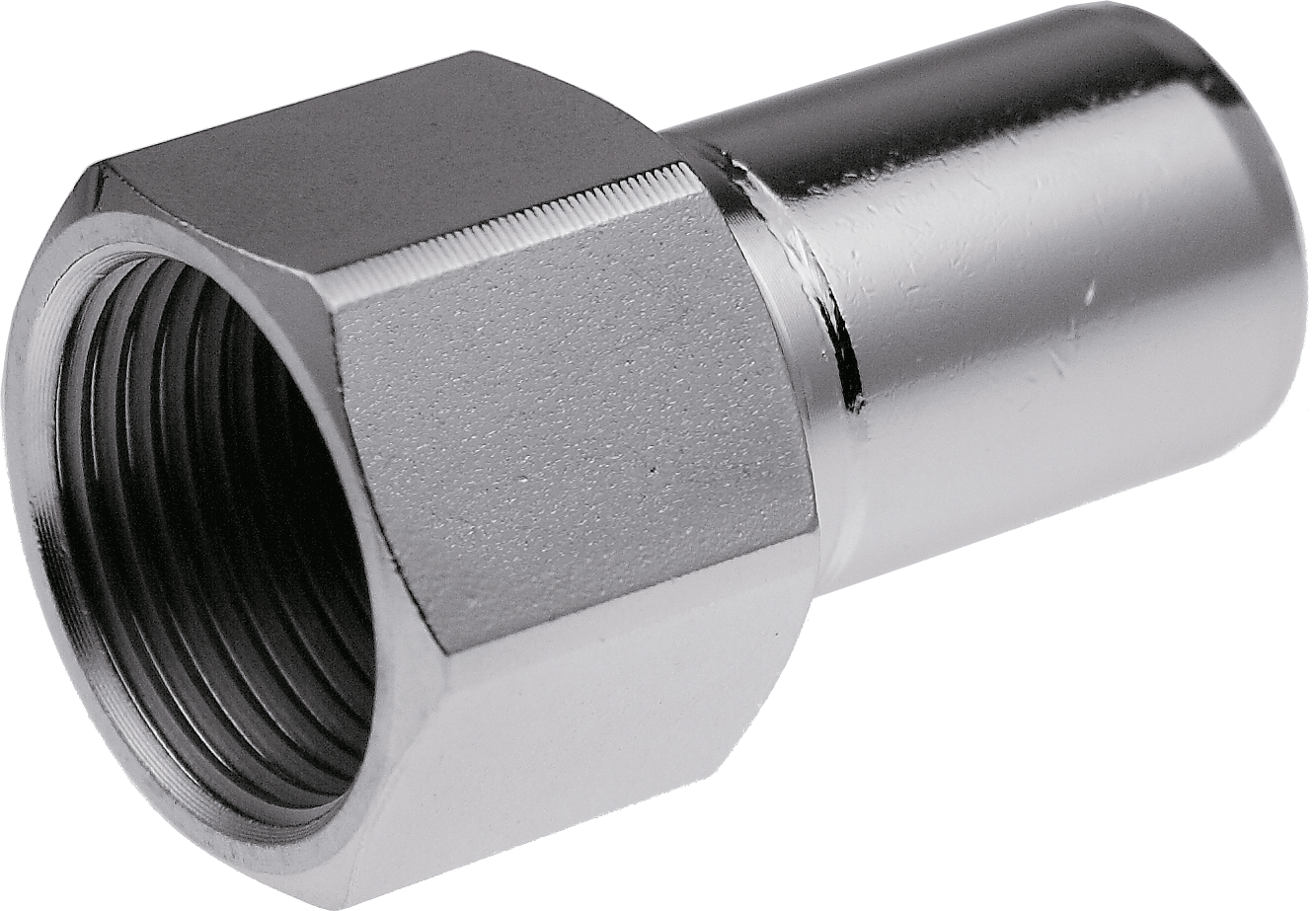

VSH STRAIGHT COUPLING PRESS X PLAIN END 18 X 3/4
Product code
0482916
No product description available.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Steel
Material connection 2Steel
ShapeStraight
Nominal diameter connection 1DN 15
Outer pipe diameter connection 118 mm
Connection 1Slide end
Nominal diameter connection 23/4 inch (20)
Connection 2Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
Length53 mm
Length of connection 128 mm
Working length connection 18 mm
Length of connection 225 mm
Working length connection 28.7 mm
Product codes
SAPAED950
HPAC0482916
PLC0482916
GTIN/EAN8711985097078
Manufacturer part number1509076005
Basic information
Package measurements (L x W x H)32 x 29 x 53 mm
Package volume0.049 l
Package weight0.08 kg
Base uniteach
Package units1
Package contents–
UNSPSC40142315
VendorNaN
