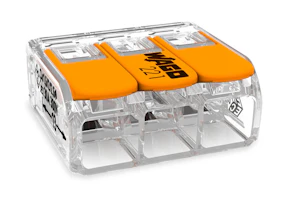

BOX CONNECTOR 221-613,3-POLE, 0.5-6mm2 30pcs
Product code
1975263
The WAGO 221-series spring connectors provide electricians with a fast, easy, and safe way to connect rigid, multi-strand, or fine-strand conductors without tools.
The new 6 mm² model can connect all conductor types with cross-sectional areas of 0.5-6 mm² (20-10 AWG). All 6 mm² connectors (2-, 3-, and 5-pole) are compatible with the new DIN rail adapter, ensuring a secure and approved installation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Push in terminal (EC000446)
Number of clamp positions3
Nominal cross section0.5 - 6 mm²
With operation leveryes
ColourColourless
Transparentyes
Nominal voltage450 V
Nominal current41 A
Suitable for solid coreyes
Suitable for flexible conductorsyes
Suitable for multi-wire conductorsyes
Conductor cross section flexible (fine-strand) with cable end sleeve0.5 - 6 mm²
Conductor cross section solid (solid, stranded)0.5 - 6 mm²
AWG-range10 - 20
Product codes
SAPCFQ334
STK1975263
PLC1975263
GTIN/EAN4055143704335
Manufacturer part number221-613
Vendor material number221-613
Basic information
Package measurements (L x W x H)110 x 85 x 45 mm
Package volume0.421 l
Package weight0.13 kg
Package units1 / 10 / 100
Package contents–
UNSPSC39121421
BrandWAGO
VendorWAGO FINLAND OY
