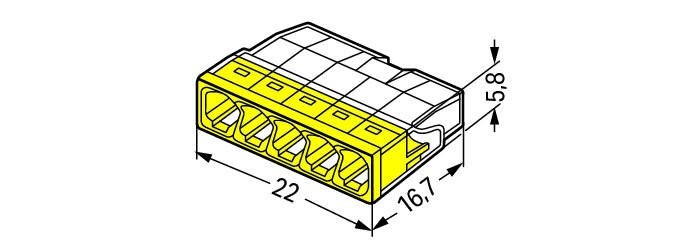

BOX CONNECTOR 2273-205 (100pcs)
Product code
1927305
WAGO Compact Terminal Blocks for Single-Core Conductors
The 2273 series is significantly smaller than its predecessor, providing more space in terminal blocks. The transparent design combined with the test point enhances safety. Color-coded terminals facilitate handling. This product description is an automated translation of the original Finnish description.
The 2273 series is significantly smaller than its predecessor, providing more space in terminal blocks. The transparent design combined with the test point enhances safety. Color-coded terminals facilitate handling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Push in terminal (EC000446)
ColourYellow
Transparentyes
Nominal voltage450 V
Nominal current24 A
Suitable for solid conductorsyes
Suitable for flexible conductorsno
Suitable for multi-wire conductorsno
Conductor cross section flexible (fine-strand) with cable end sleeve0.2 - 2.5 mm²
Conductor cross section solid (solid, stranded)0.2 - 4 mm²
Product codes
SAPALX039
STK1927305
PLC1927305
GTIN/EAN4050821027874
Manufacturer part number2273-205
Vendor material number2273-205
Basic information
Package measurements (L x W x H)110 x 85 x 45 mm
Package volume0.421 l
Package weight0.185 kg
Package units1 / 10 / 760
Package contents100 each
UNSPSC39121421
BrandWAGO
VendorWAGO FINLAND OY
