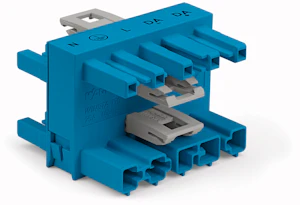

DISTRIBUTION CONNECTOR 5-POLE, DALI, H-CONNECTOR,BLUE

Product code
1923339
The WINSTA plug-in system consists of plugs, distributors, cable runs, and connection boxes. These products enable easy and rapid installation of complete power supply and lighting control solutions. WINSTA cable runs are machine-manufactured, and spring-technology connectors ensure a maintenance-free solution throughout the entire service life. Thanks to the locking system, installation is secure and reliable. Once the WINSTA plug-in system is fully installed, inspection can be conveniently carried out through test openings. The advantages of the WINSTA plug-in system are rapid initial installation during project implementation and the adaptability of electrical systems during building operation. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Compact distributor for plug-in building installation (EC002567)
Rated voltage400 V
Rated current25 A
Rated current to luminaire25 A
Number of poles5
Degree of protection (IP)IP20
Number of inputs5
Number of outputs15
Pole codificationL, N, PE, D1, D2
Mechanical codingyes
Colour coding/contact insertBlue
Type of lockingIntegrated in plug-in connector
Halogen freeyes
Max. continuous temperature resistance contact part85 °C
Max. continuous temperature resistance strain relief105 °C
Housing materialPolyamide (PA)

Product codes

SAPCDI443
STK1923339
PLC1923339
GTIN/EAN4050821394778
Manufacturer part number770-618
Vendor material number770-618

Basic information

Package measurements (L x W x H)46 x 50 x 36.7 mm
Package volume0.084 l
Package weight0.042 kg
Base uniteach
Package units1 / 25 / 150
Package contents
UNSPSC43221702
BrandWAGO
VendorWAGO FINLAND OY
