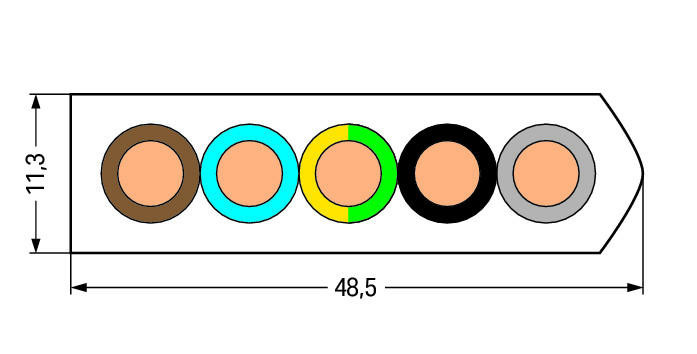

FLAT CABLE WAGO 5x16mm2, HF CCA
Product code
0439009
Power supply for charging devices of hybrid and electric vehicles
Features
- Halogen-free cable
- For installation of charging devices
- 600 V / 1000 V
- Color light gray

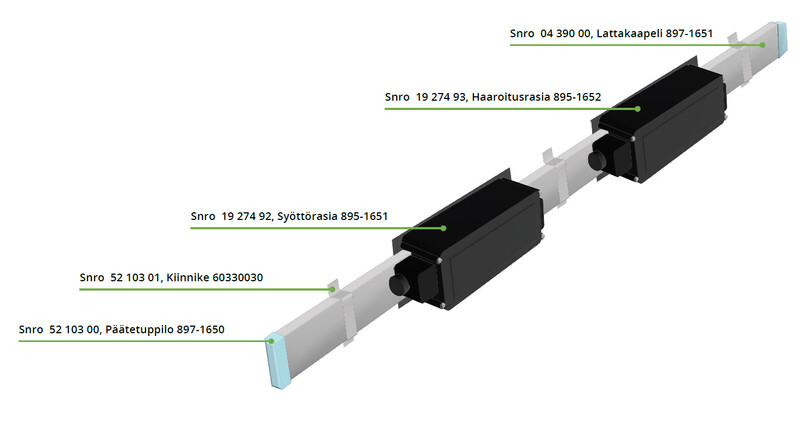

Benefits of the floor cable system
- Clear cost allocation
- System is quick to install
- Parking spaces are preserved
- Charging devices can be easily added later This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for moving application (EC003250)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor16 mm²
Conductor categoryClass 5 = flexible
Conductor resistance at 20 °C1.21 Ohm/km
Number of cores5
Screen over stranding elementNone
Stranding elementNo
Screen over strandingNone
Material core insulationPolyolefin
Specification core insulationPolyethylene (PE)
Core identification according to HD 308 S2no
Core identificationColour
With protective conductoryes
Suspension elementNone
Product codes
SAPCIX752
STK0439009
PLC0439009
GTIN/EAN4045454006372
Manufacturer part number897-1652
Vendor material number897-1652
Basic information
Package measurements (L x W x H)1000 x 50 x 10 mm
Package volume0.5 l
Package weight1.3 kg
Base unitMeter
Package units1
Package contents–
UNSPSC26121509
BrandWAGO
VendorWAGO FINLAND OY
