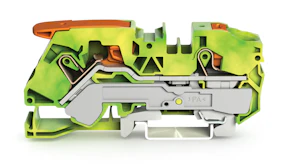

GROUND TERMINAL BLOCK,2-COND 16, GREEN-YELLOW
Product code
1927458
WAGO TOP JOB spring terminals allow you to install all types of conductors quickly and reliably. WAGO's spring-loaded terminal block is an extremely safe and reliable solution for all installation applications. Unlike screw terminals, there is no loosening of screws, making spring terminals maintenance-free. Installation is significantly faster and easier. Labeling can be done traditionally with WMB labels or printed as strip labels directly from your computer using a Smartprinter. This further reduces overall installation time and saves costs compared to traditional labeling methods. TOP JOB spring terminals are ATEX-protected and carry nearly all common approvals. Due to their reliability and maintenance-free nature, they are widely used not only in control cabinets but also in mobile equipment and demanding industrial applications. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ground terminal block (EC000901)
PEN function possibleyes
Connectable conductor cross section fine-strand without cable end sleeve0.5-25 mm²
Connectable conductor cross section fine-strand with cable end sleeve2.5-16 mm²
Connectable conductor cross section solid-core2.5-16 mm²
Connectable conductor cross section multi-wired0.5-16 mm²
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature105-105 °C
Width12 mm
Height91.5 mm
Depth36.9 mm
Product codes
SAPCIE603
STK1927458
PLC1927458
GTIN/EAN4055143754453
Manufacturer part number2116-5207
Vendor material number2116-5207
Basic information
Package measurements (L x W x H)61.5 x 5.2 x 32.9 mm
Package volume0.011 l
Package weight0.002 kg
Base uniteach
Package units20
Package contents–
UNSPSC39121410
BrandWAGO
VendorWAGO FINLAND OY
