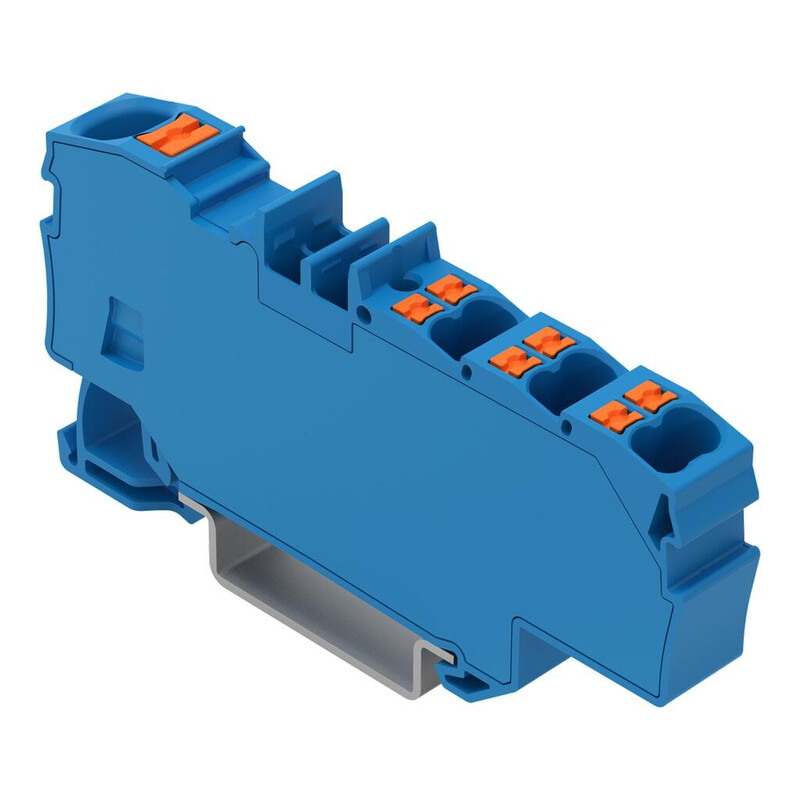

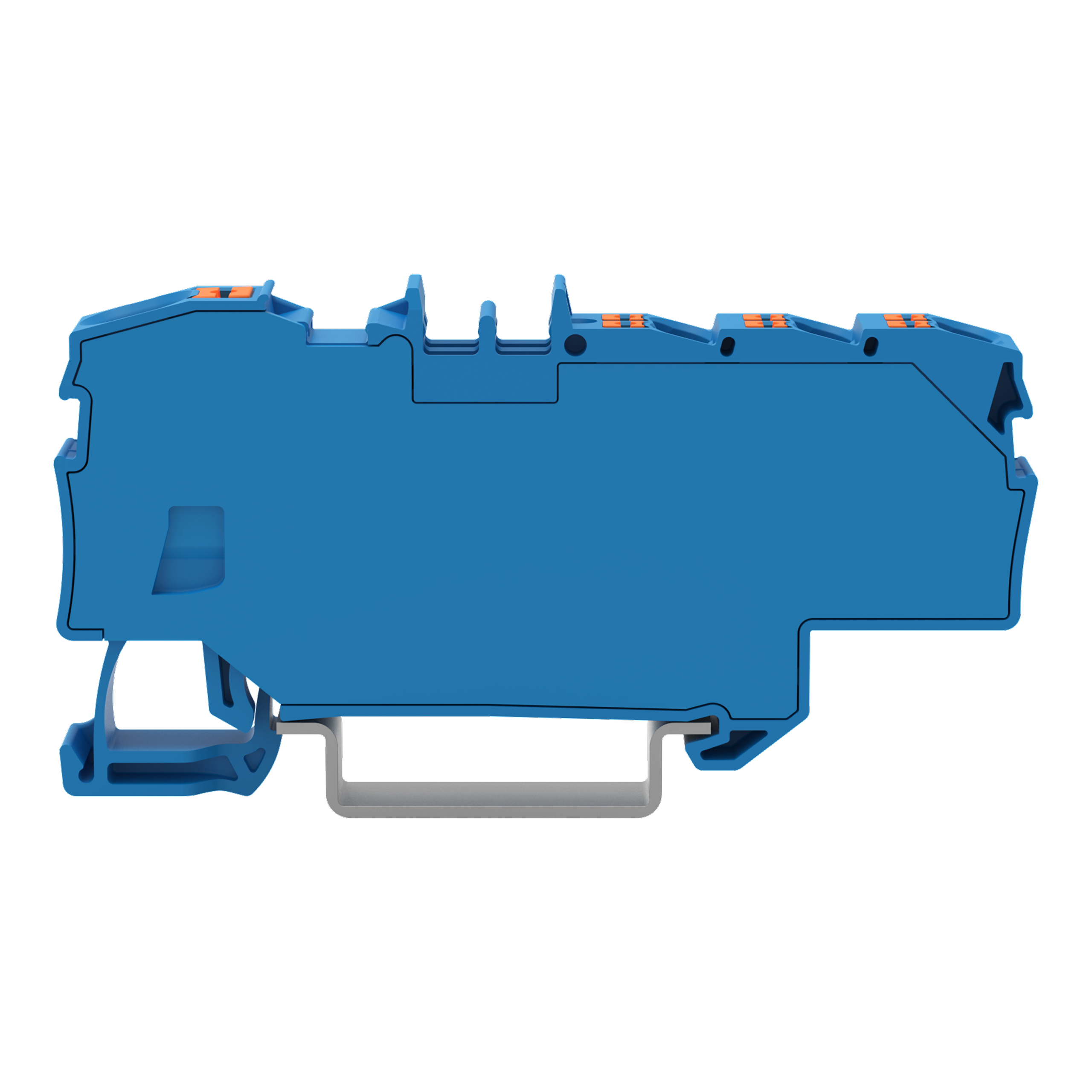

TAPPING CONNECTOR 1x6(10)mm2/6x1.5(2,5)mm2 BLUE

NEW! With WAGO TOP JOB branch connectors, you can collect neutral fault currents into a single connector, install phase separation, grounding, or low-voltage side +/- separation. WAGO's new branch connectors, also known as collector connectors, are available in five colors: blue, gray, yellow/gray, black, and red. The input side has one terminal for a maximum conductor cross-section of 10 mm², and the output side has six terminals for a maximum conductor cross-section of 2.5 mm². The connectors are quick to install thanks to the push-in spring technology and feature a fixed terminal plate. Using these connectors saves space in the lateral direction, as the connector width is only 9 mm, i.e., ½ module. Labeling can be done traditionally with WMB labels or printed using a Smartprinter. Two-terminal connectors can be bridged to the same potential using two bridges (2001-404, part no. 1923103), and three-terminal connectors can be bridged to the same potential using two bridges (2001-406, part no. 1927408). Double bridging must be used for current-carrying capacity. This product description is an automated translation of the original Finnish description.
