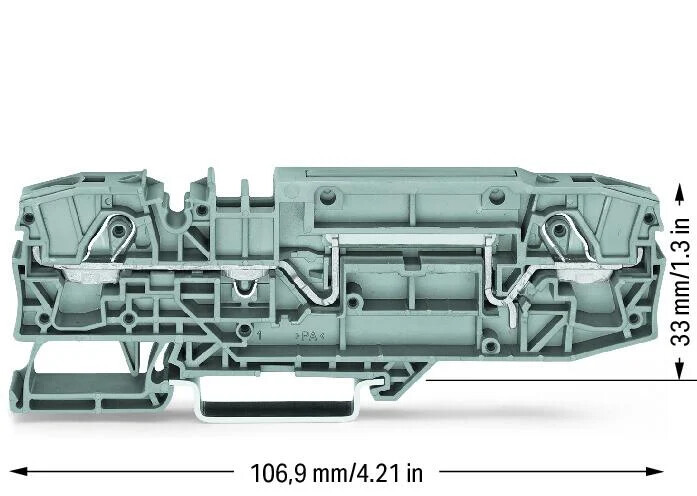

TERMINAL BLOCK 2-POLE 0.5-6(10)mm2, GR SOLAR
Product code
1939409
WAGO TOP JOB connectors for solar PV installations
These busbar connectors are designed for installation between the inverter and solar panels. The busbar connectors are highly insulated and rated for 1500 V DC.
All cable types can be quickly and reliably connected to the busbar connectors. WAGO’s spring-loaded busbar connector is an extremely safe and reliable solution for all installation applications. Unlike screw terminals, there is no loosening of screws, making spring connectors maintenance-free. Installation is significantly faster and easier. Labeling can be done traditionally using WMB labels or printed as strip labels directly from your computer using a Smartprinter. This further reduces overall installation time and saves costs compared to traditional labeling methods. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve0.5-10 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5-6 mm²
Connectable conductor cross section solid-core0.5-10 mm²
Connectable conductor cross section multi-wired0.5-10 mm²
Rated current In30 A
Rated voltage1000 V
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialCopper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60-105 °C
Width15 mm
Product codes
SAPDAQ335
STK1939409
PLC1939409
GTIN/EAN4050821372486
Manufacturer part number2006-8601
Vendor material number2006-8601
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.112 l
Package weight0.031 kg
Base uniteach
Package units12 / 240
Package contents–
UNSPSC39121410
BrandWAGO
VendorWAGO FINLAND OY
