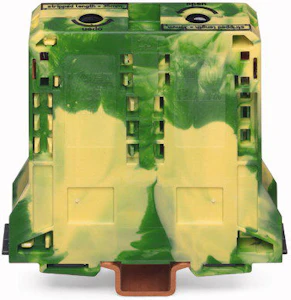

TERMINAL BLOCK 2-POLE,CU 25-90mm2,GREEN-YELLO
Product code
1976703
Copper conductors for terminal strip 25-90 mm², DIN rail 35x15 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ground terminal block (EC000901)
PEN function possibleyes
Connectable conductor cross section fine-strand without cable end sleeve25-95 mm²
Connectable conductor cross section fine-strand with cable end sleeve25-95 mm²
Connectable conductor cross section solid-core25-95 mm²
Connectable conductor cross section multi-wired25-95 mm²
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature105-105 °C
Width25 mm
Height107 mm
Depth101 mm
Product codes
SAPHDI384
STK1976703
PLC1976703
GTIN/EAN4045454204372
Manufacturer part number285-197
Vendor material number285-197
Basic information
Package measurements (L x W x H)101 x 25 x 107 mm
Package volume0.27 l
Package weight0.156 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39121410
BrandWAGO
VendorWAGO FINLAND OY
