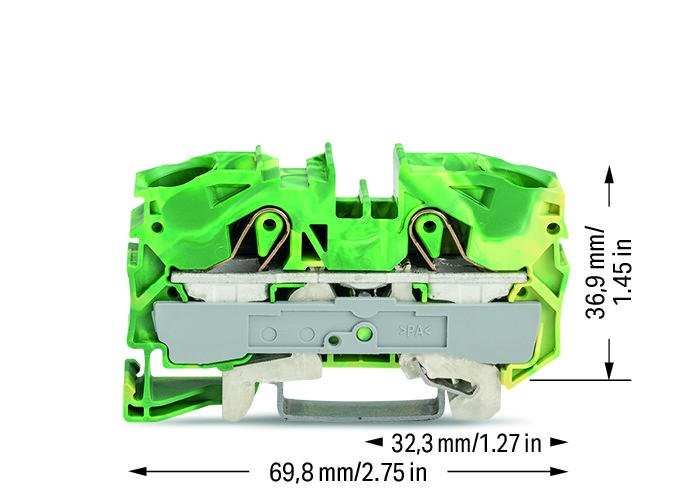

TERMINAL BLOCK 2016-1207

Product code
1976304
WAGO TOP JOBS terminal blocks allow you to install all types of conductors quickly and reliably WAGO’s spring-loaded terminal block is an extremely safe and reliable solution for all installation applications. Unlike screw terminals, there is no loosening of screws, making spring terminals maintenance-free. Installation is significantly faster and easier. Labeling can be done traditionally using WMB labels or printed via Smartprinter with strip labels directly from your computer. This further reduces overall installation time and saves costs compared to traditional labeling methods. TOP JOB’S terminal blocks are ATEX-protected and carry nearly all common approvals. Due to their reliability and maintenance-free nature, they are widely used not only in control cabinets but also in mobile equipment and demanding industrial applications. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ground terminal block (EC000901)
PEN function possibleyes
Connectable conductor cross section fine-strand without cable end sleeve0.5-25 mm²
Connectable conductor cross section fine-strand with cable end sleeve2.5-16 mm²
Connectable conductor cross section solid-core2.5-16 mm²
Connectable conductor cross section multi-wired0.5-16 mm²
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature105-105 °C
Width12 mm
Height69.8 mm
Depth36.9 mm

Product codes

SAPCFN919
STK1976304
PLC1976304
GTIN/EAN4017332076654
Manufacturer part number2016-1207
Vendor material number2016-1207

Basic information

Package measurements (L x W x H)70 x 43 x 12 mm
Package volume0.036 l
Package weight0.022 kg
Base uniteach
Package units1 / 20
Package contents
UNSPSC39121424
BrandWAGO
VendorWAGO FINLAND OY
