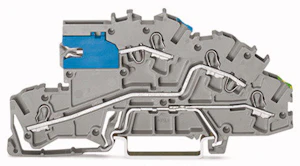

TERMINAL BLOCK MULTILEVEL NT/L/PE
Product code
1923155
Installation connector separate N-rail 10 x 3 mm.
The following products are required for the system:
- 1923155 (2003-7641) Installation connector NT/L/PE
- 1923209 (2016-7714) N-feed connector
- 1923190 (2009-305) Rail holder
- 1923211 (210-133) N-rail 10 x 3 mm, 1000 mm
- 1923194 (777-303) N-rail cover, transparent
Product details
Technical specifications
Product class (ETIM)Multi level installation terminal block (EC001329)
Connectable conductor cross section fine-strand without cable end sleeve0.25-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.75-2.5 mm²
Connectable conductor cross section solid-core0.75-4 mm²
Connectable conductor cross section multi-wired0.25-2.5 mm²
Rated current In32 A
Rated voltage250 V
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of potentials3
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature105-105 °C
Inflammability class of insulation material according to UL94V0
Width5.2 mm
Height96 mm
Product codes
SAPHDI347
STK1923155
PLC1923155
GTIN/EAN4044918925587
Manufacturer part number2003-7641
Vendor material number2003-7641
Basic information
Package measurements (L x W x H)94 x 46 x 6 mm
Package volume0.026 l
Package weight0.017 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC39121410
BrandWAGO
VendorWAGO FINLAND OY
