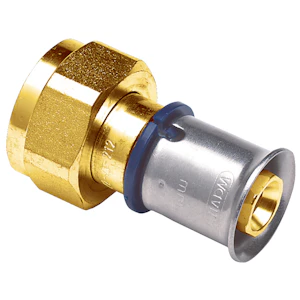

DRL SCREW CON. TIGRIS FT 63X2 M1

Product code
1750487
Wavin Tigris composite system products are designed for domestic water as well as heating or cooling applications. The system consists of patented fittings and composite pipes, installed using a reliable and rapid radial crimping technology that joins the pipes together. The Tigris M1 series is a cost-effective and long-term solution for new construction and renovation projects. The system is suitable for private homes as well as larger properties such as hospitals and hotels. The non-crimped fittings are easily identifiable during a hydraulic pressure test thanks to the Defined Leak feature that reveals leaks. Features of the Tigris M1 series: - Designed for domestic water and heating systems - Manufactured from DZR brass - Diameter range of 50-75 mm - Grip-retaining - Require minimal pushing force - fast and efficient installation - Defined Leak function for hydraulic pressure testing This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Brass
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Bend angle0 °
Bend radius0 mm
Reducingno
Eccentricno
System specificno

Product codes

SAPDLE401
HPAC1750487
PLC1750487
GTIN/EAN4063876083245
Manufacturer part number3090846
Vendor material number3090846

Basic information

Package measurements (L x W x H)70 x 70 x 110 mm
Package volume0.99 l
Package weight0.9 kg
Base uniteach
Package units2 / 8 / 360
Package contents
UNSPSC40141720
BrandWAVIN
VendorWAVIN FINLAND OY
