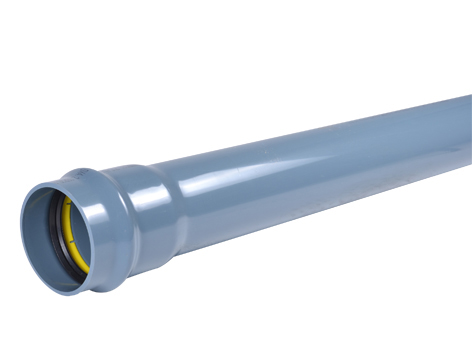

PRESS. PIPE GY PVC WAVIN 315x6000 PN12.5
Product code
2131639
PVC-U pressure pipes for drinking water. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Plastic pipe smooth (EC010882)
MaterialPolyvinyl chloride (PVC)
Material qualityPVC-U
Surface protectionOther
Diffusion-proofno
Nominal diameterOther
Outer pipe diameter315 mm
Wall thickness15 mm
Connection 1Slide sleeve
Insert length connection 1185 mm
Connection 2Tube end
Insert length connection 20 mm
Article compression classPN 12.5
Standard Dimension Ratio (SDR)21
Max. medium temperature (momentarily)40 °C
Max. operating pressure at max. medium temperature0 bar
Product codes
SAPDIG952
HPAC2131639
PLC2131639
GTIN/EAN5708525307868
Manufacturer part number2131639
Vendor material number3060322
Basic information
Package measurements (L x W x H)6000 x 315 x 315 mm
Package volume878.2 l
Package weight133.94 kg
Base uniteach
Package units9
Package contents–
UNSPSC40141720
BrandWAVIN
VendorWAVIN FINLAND OY
Documents (2)
Certificates
Links
Environment and safety
Manufacturer
NameWavin Finland Oy
Postal addressVisiokatu 1, 33720 Tampere
