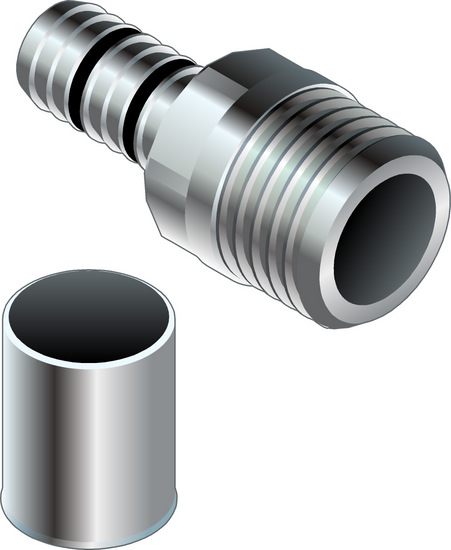

STRAIGHT COUPLING MT WEHOPRESS 20x3/4 MS
Product code
1728861
No product description available.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material connection 2Brass
ShapeStraight
Eccentricno
Outer pipe diameter connection 120 mm
Connection 1Press sleeve
Nominal diameter connection 23/4 inch (20)
Connection 2External thread cylindrical BSPP-G (ISO 228-1)
Max. operating pressure at 20 °C10 bar
Product codes
SAPABW642
HPAC1728861
PLC1728861
GTIN/EAN6414905204083
Manufacturer part number1064631
Vendor material number1728861
Basic information
Package measurements (L x W x H)50 x 25 x 50 mm
Package volume0.063 l
Package weight0.073 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC40141720
BrandWEHOPRESS
VendorUPONOR SUOMI OY
Documents (4)
Brochures & documents
Links
Environment and safety
Features
Type ApprovalYes
Warranty (years)2
