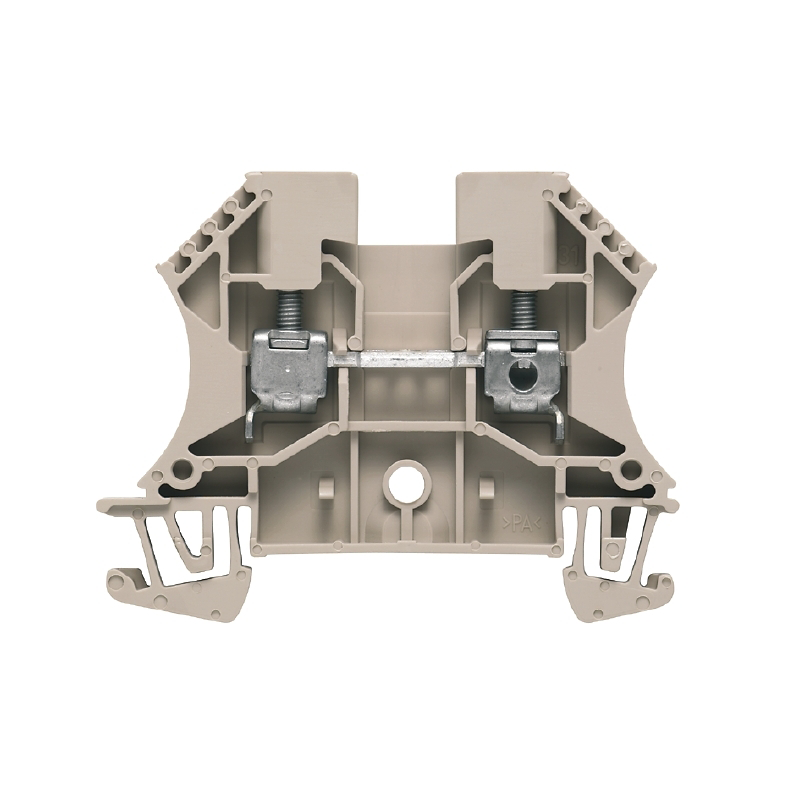

TERMINAL BLOCK 1020100000 / WDU 4
Product code
1970021
Feed-through terminal block, screw connection, 4 mm², 800 V, 32 A, number of connections: 2, number of levels: 1, number of potentials per tier: 1, Wemid, TS 35, Dark Beige This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve0.5-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5-4 mm²
Connectable conductor cross section solid-core0.5-6 mm²
Connectable conductor cross section multi-wired1.5-6 mm²
Rated current In32 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialCopper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-60-130 °C
Width6.1 mm
Product codes
SAPANM728
STK1970021
PLC1970021
GTIN/EAN4008190150617
Manufacturer part number1020100000
Vendor material number1020100000
Basic information
Package measurements (L x W x H)58 x 45 x 7 mm
Package volume0.018 l
Package weight0.008 kg
Base uniteach
Package units100
Package contents–
UNSPSC39121410
BrandWEIDMÜLLER
VendorWEIDMÜLLER SUOMI
