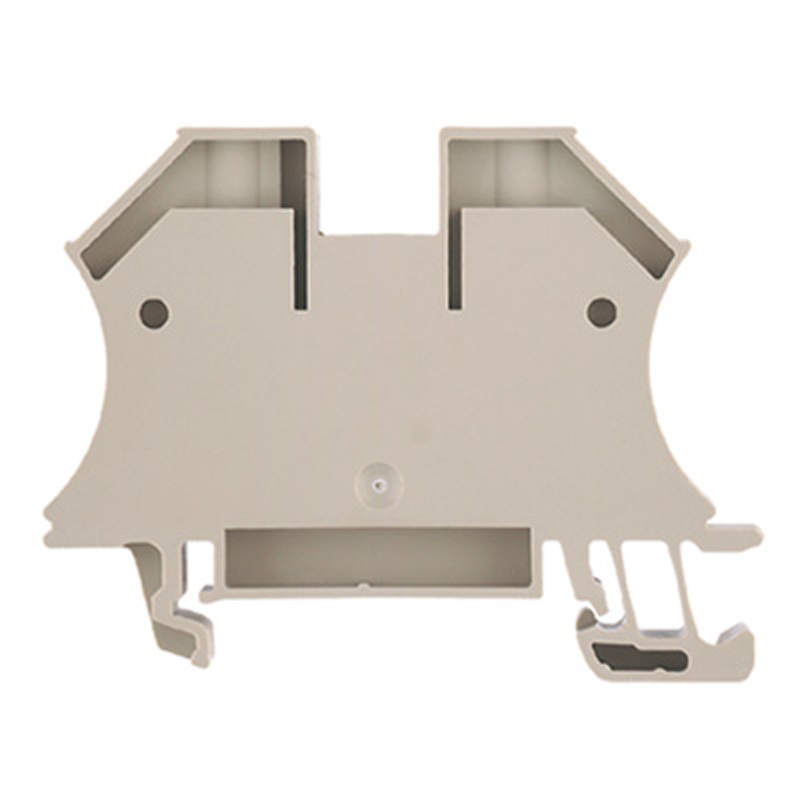

TERMINAL BLOCK 1036100000 / WDU 16N
Product code
1970039
Feed-through terminal block, screw connection, 16 mm², 690 V, 76 A, number of connections: 2, number of levels: 1, number of potentials per tier: 1, Wemid, TS 35, Dark Beige This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve1.5-16 mm²
Connectable conductor cross section fine-strand with cable end sleeve1.5-16 mm²
Connectable conductor cross section solid-core1.5-16 mm²
Connectable conductor cross section multi-wired1.5-25 mm²
Rated current In76 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialCopper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-50-120 °C
Width12 mm
Height60 mm
Product codes
SAPANM745
STK1970039
PLC1970039
GTIN/EAN4008190273217
Manufacturer part number1036100000
Vendor material number1036100000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.043 l
Package weight0.025 kg
Base uniteach
Package units50
Package contents–
UNSPSC39121410
BrandWEIDMÜLLER
VendorWEIDMÜLLER SUOMI
