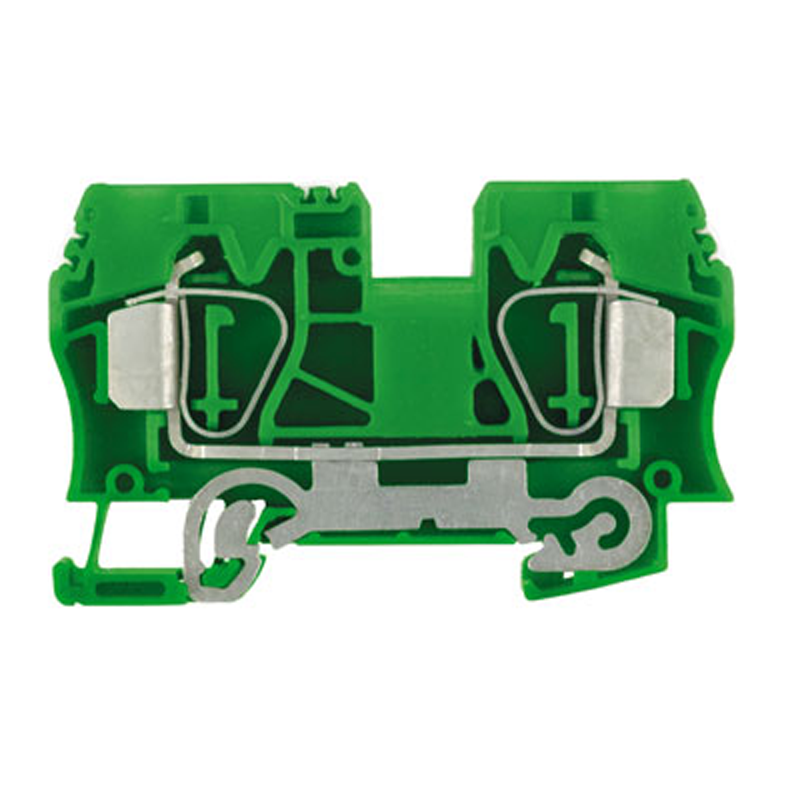

TERMINAL BLOCK ZPE 10, 10mm2 GREEN/YEL
Product code
1971534
PE terminal, tension clamp connection, 10 mm², 800 V, number of connections: 2, number of levels: 1, green/yellow This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ground terminal block (EC000901)
PEN function possibleno
Connectable conductor cross section fine-strand without cable end sleeve1.5-10 mm²
Connectable conductor cross section fine-strand with cable end sleeve1.5-10 mm²
Connectable conductor cross section solid-core1.5-16 mm²
Connectable conductor cross section multi-wired1.5-16 mm²
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Other
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-50-120 °C
Width10.1 mm
Height73.5 mm
Depth49.5 mm
Product codes
SAPANO137
STK1971534
PLC1971534
GTIN/EAN4008190996734
Manufacturer part number1746770000
Vendor material number1746770000
Basic information
Package measurements (L x W x H)73 x 48 x 11 mm
Package volume0.039 l
Package weight0.03 kg
Base uniteach
Package units25
Package contents–
UNSPSC39121410
BrandWEIDMÜLLER
VendorWEIDMÜLLER SUOMI
