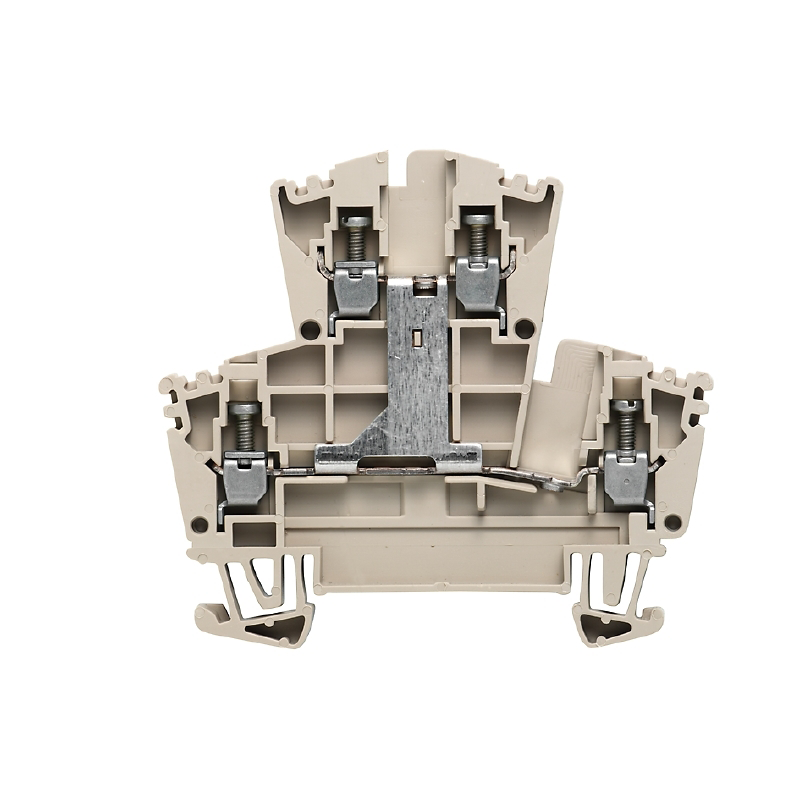

TERMINAL BLOCK 1022300000 / WDK 2,5 V
Product code
1970207

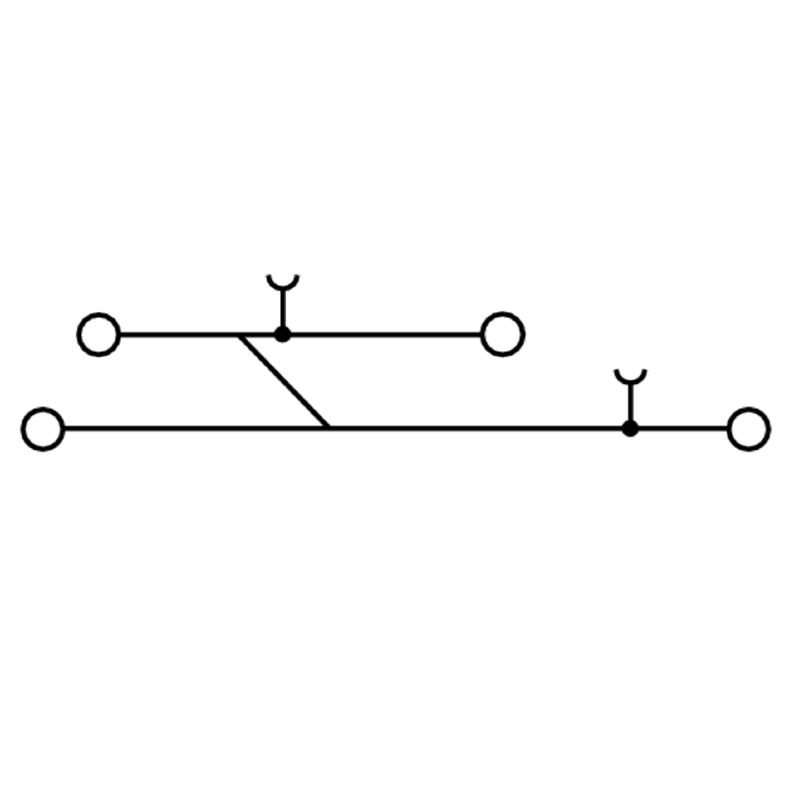

Multi-tier modular terminal, screw connection, 2.5 mm², 400 V, 24 A, number of levels: 2, dark beige This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve0.5-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5-2.5 mm²
Connectable conductor cross section solid-core0.5-4 mm²
Connectable conductor cross section multi-wired1.5-4 mm²
Rated current In24 A
Rated voltage400 V
Type of electrical connection 1Screw connection
Number of levels2
Number of clamp positions per level2
Suitable for conductor materialCopper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-50-120 °C
Width5.1 mm
Height69.5 mm
Product codes
SAPANM902
STK1970207
PLC1970207
GTIN/EAN4008190082031
Manufacturer part number1022300000
Vendor material number1022300000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.027 l
Package weight0.014 kg
Base uniteach
Package units100
Package contents–
UNSPSC39121410
BrandWEIDMÜLLER
VendorWEIDMÜLLER SUOMI
