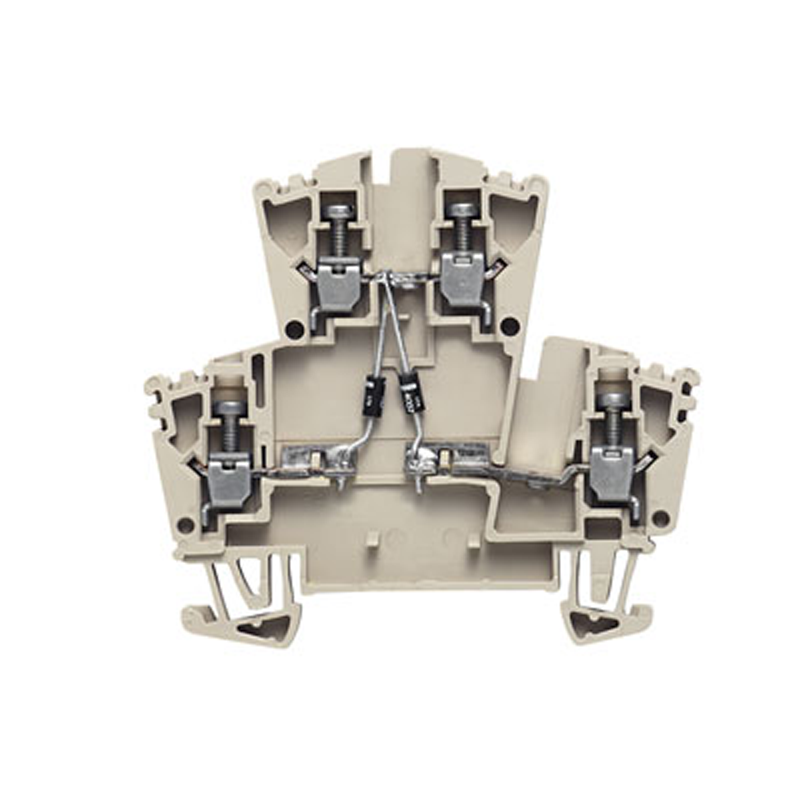

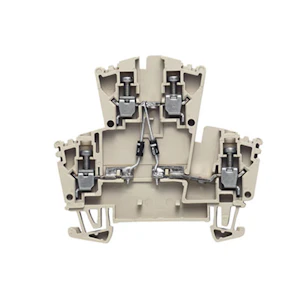

TERMINAL BLOCK 1022600000 / WDK 2,5 D
Product code
1970210
Component terminal block, screw connection, 2.5 mm², 400 V, 10 A, diode 1N 4007, diode 1N 4007, TS 35, dark beige This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Component terminal block (EC000903)
Explosion-tested version 'Ex e'no
Connectable conductor cross section fine-strand without cable end sleeve0.5-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5-2.5 mm²
Connectable conductor cross section solid-core0.5-4 mm²
Connectable conductor cross section multi-wired1.5-4 mm²
Rated current In10 A
Rated voltage400 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Other
Number of levels2
Number of clamp positions per level2
Internally connected stagesyes
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-50-120 °C
Product codes
SAPANM905
STK1970210
PLC1970210
GTIN/EAN4008190098469
Manufacturer part number1022600000
Vendor material number1022600000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.031 l
Package weight0.014 kg
Base uniteach
Package units25
Package contents–
UNSPSC39121410
BrandWEIDMÜLLER
VendorWEIDMÜLLER SUOMI
