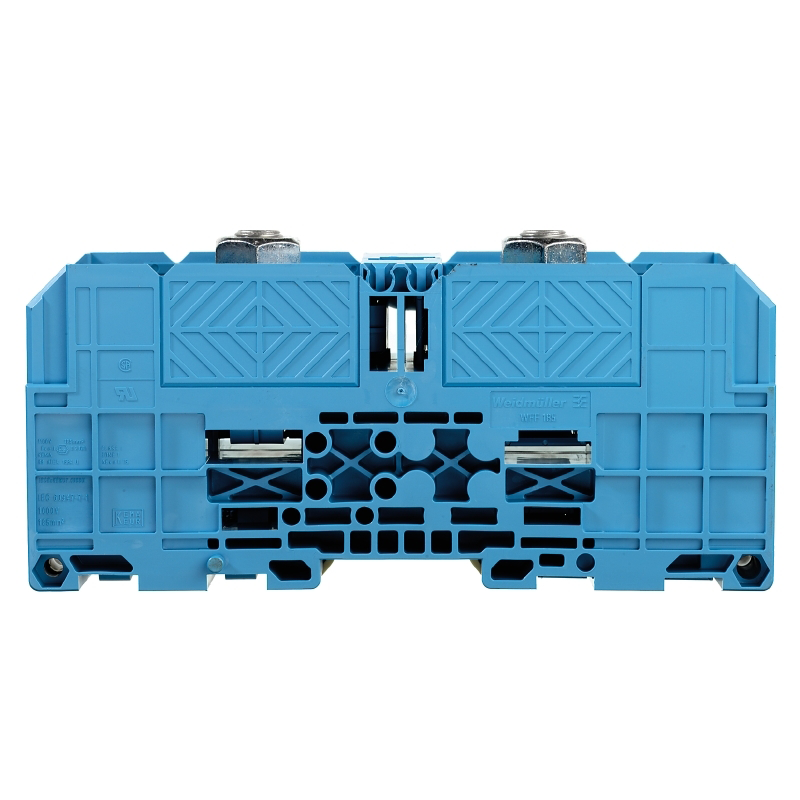

TERMINAL BLOCK 1028680000 / WFF 185 10240 SIN
Product code
1971067
No product description available.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve10 ... 240 mm²
Rated current In353 A
Rated voltage1000 V
Type of electrical connection 1Bolt connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-50 ... 120 °C
Inflammability class of insulation material according to with UL94V0
Explosion-tested version 'Ex e'true
Closing plate requiredfalse
ColourBlue
Internally connected stagesfalse
Length163 mm
Product codes
SAPANO014
PLC1971067
STK1971067
GTIN/EAN4008190061005
Manufacturer part number1028680000
Vendor material number1028680000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.985 l
Package weight0.441 kg
Base uniteach
Package units4
Package contents–
UNSPSC39121410
BrandWEIDMÜLLER
VendorWEIDMÜLLER SUOMI
