TERMINAL BLOCK 1033300000 / WDU 2,5/TC/E
Product code
1970018

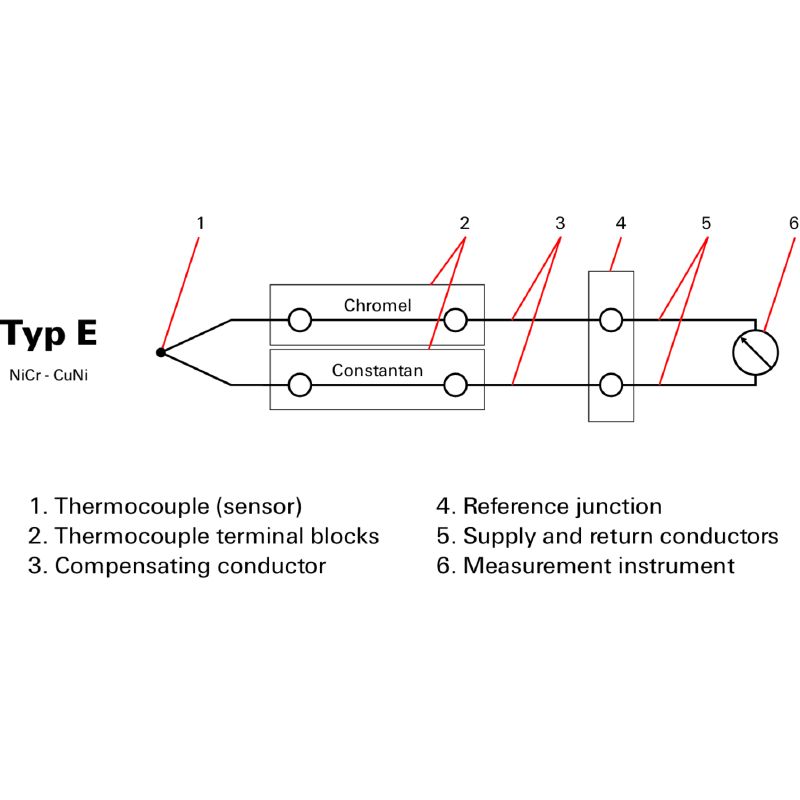

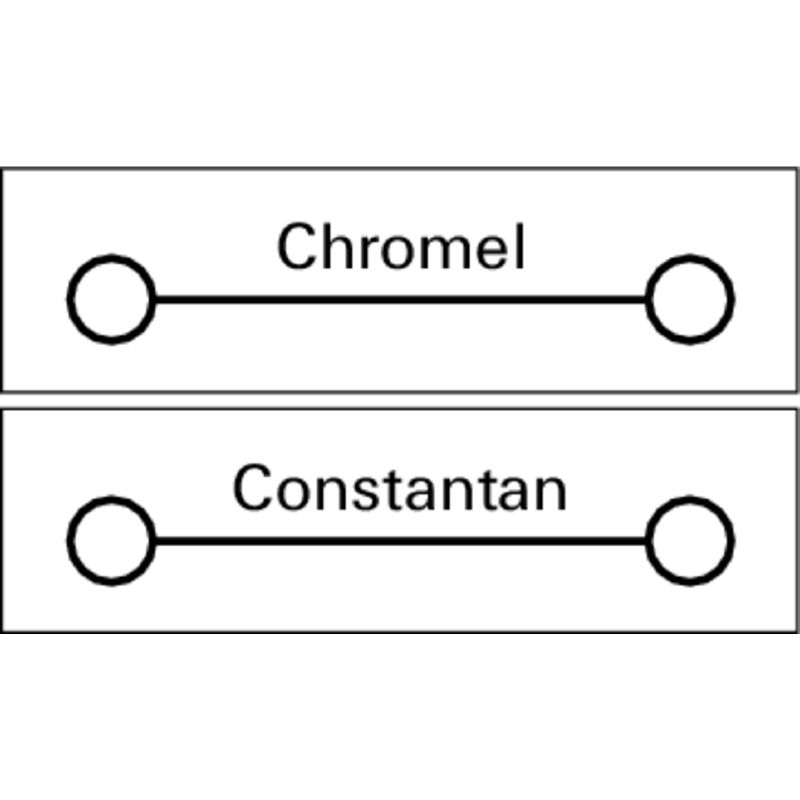

WDU 2.5/TC TYPE E This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Thermal couple terminal block (EC000904)
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 2.5 mm²
Connectable conductor cross section solid-core0.5 - 2.5 mm²
Connectable conductor cross section multi-wired1.5 - 2.5 mm²
Type of electrical connection 1Screw connection
Type of electrical connection 2Other
Number of levels1
Number of clamp positions per level2
Internally connected stagesno
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-60 - 130 °C
Inflammability class of insulation material according to UL94V0
Closing plate requiredyes
ColourBeige
Product codes
SAPANM725
STK1970018
PLC1970018
GTIN/EAN4008190009717
Manufacturer part number1033300000
Vendor material number1033300000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.043 l
Package weight0.017 kg
Base uniteach
Package units50
Package contents–
UNSPSC39121410
BrandWEIDMÜLLER
VendorWEIDMÜLLER SUOMI
