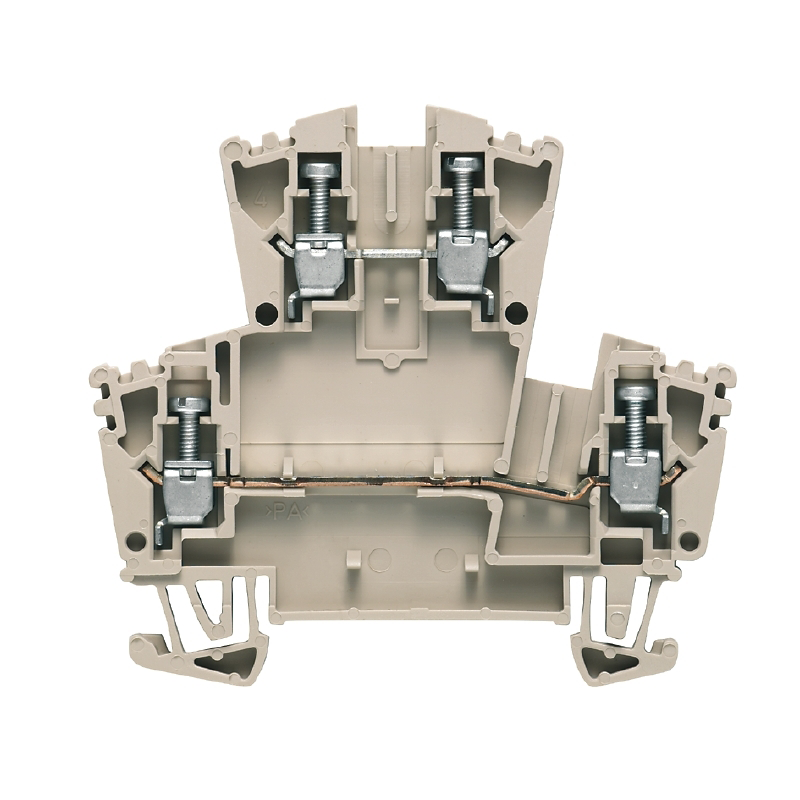

TERMINAL BLOCK 1041100000 DEK 6 FSZ 11-20
Product code
1970190

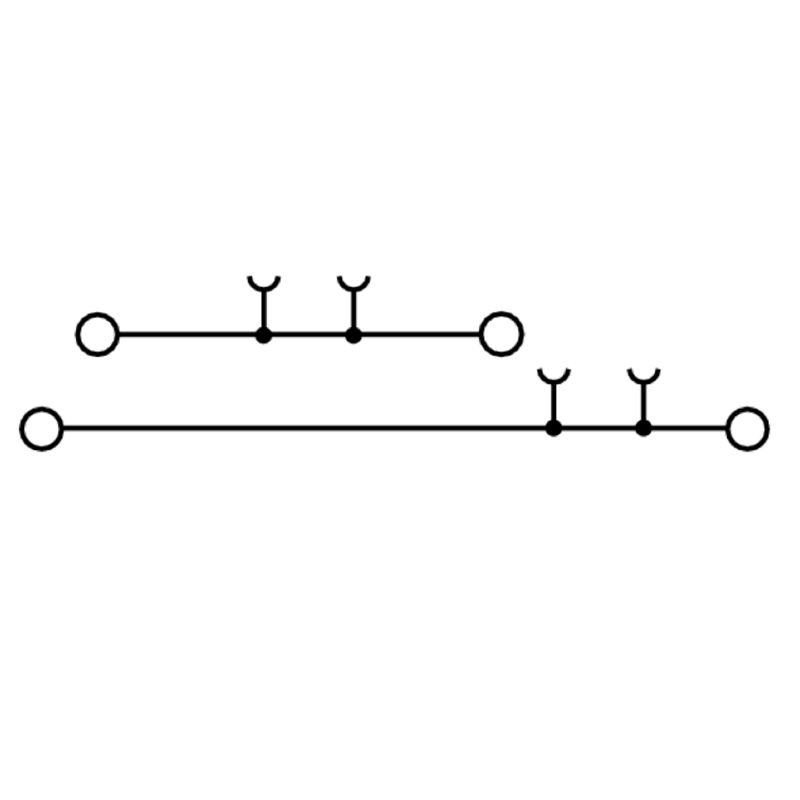

Multi-tier modular terminal, screw connection, 2.5 mm², 400 V, 24 A, number of levels: 2, dark beige This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve0.5-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5-2.5 mm²
Connectable conductor cross section solid-core0.5-4 mm²
Connectable conductor cross section multi-wired1.5-4 mm²
Rated current In24 A
Rated voltage400 V
Type of electrical connection 1Screw connection
Number of levels2
Number of clamp positions per level2
Suitable for conductor materialCopper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-50-120 °C
Width5.1 mm
Height69 mm
Product codes
SAPANM889
STK1970190
PLC1970190
GTIN/EAN4008190972332
Manufacturer part number1041100000
Vendor material number1041100000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.028 l
Package weight0.013 kg
Base uniteach
Package units100
Package contents–
UNSPSC39121410
BrandWEIDMÜLLER
VendorWEIDMÜLLER SUOMI
