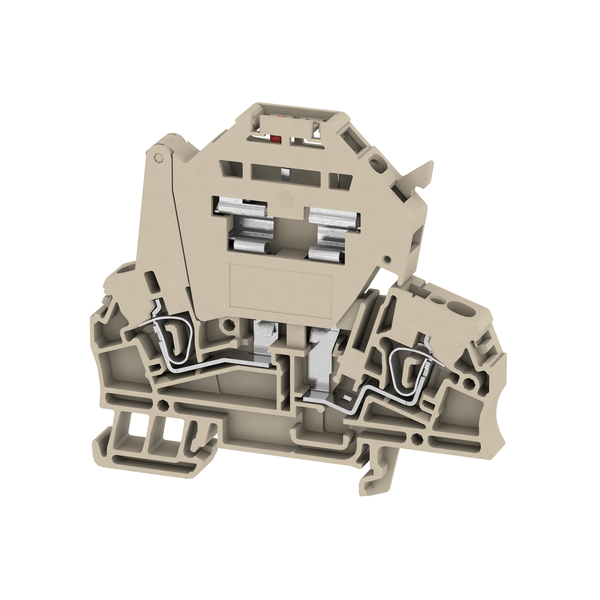

TERMINAL BLOCK 1616410000 / ZSI 25
Product code
1970306

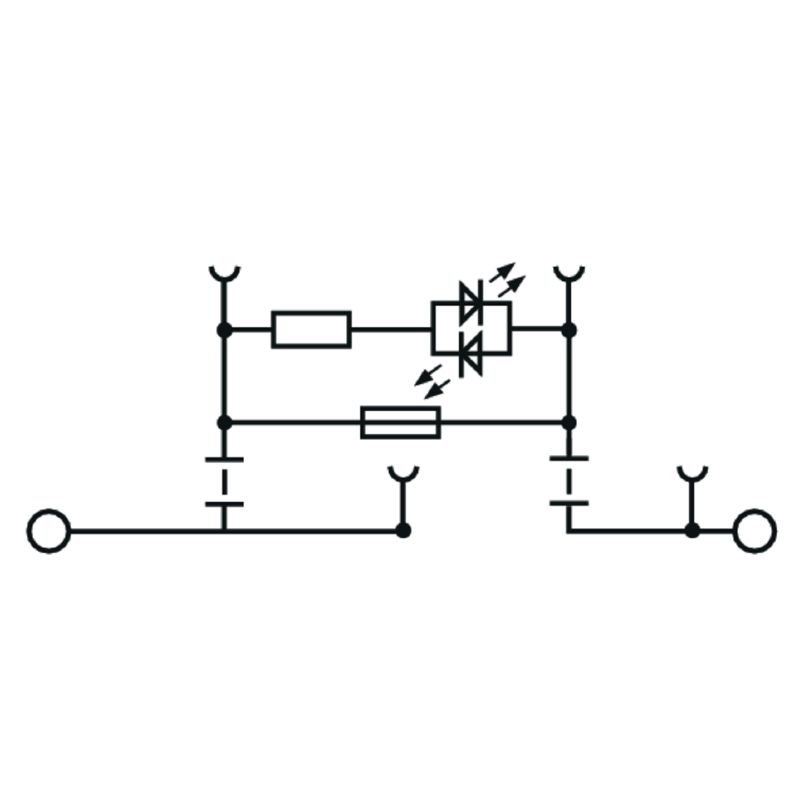

Fuse terminal, tension-clamp connection, fuse cartridge with LED, for plug-in cross-connector, one end without connector, tension clamp connection, 2.5 mm², 250 V, 6.3 A, G-Si. 5 x 20, TS 35, Dark Beige This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fuse terminal block (EC000899)
Type of fuse insertG-fuse 5x20 mm
Type of fuse holderSwivelling
Type of indication element for defect indicationLED
Supply voltage for defect-indication250-250 V
Voltage type for defect indicationAC/DC
Connectable conductor cross section fine-strand without cable end sleeve0.5-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5-2.5 mm²
Connectable conductor cross section solid-core0.5-4 mm²
Rated current In6.3 A
Rated voltage250 V
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Other
Number of levels1
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Product codes
SAPANM956
STK1970306
PLC1970306
GTIN/EAN4008190196844
Manufacturer part number1616410000
Vendor material number1616410000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.062 l
Package weight0.022 kg
Base uniteach
Package units50
Package contents–
UNSPSC39121410
BrandWEIDMÜLLER
VendorWEIDMÜLLER SUOMI
