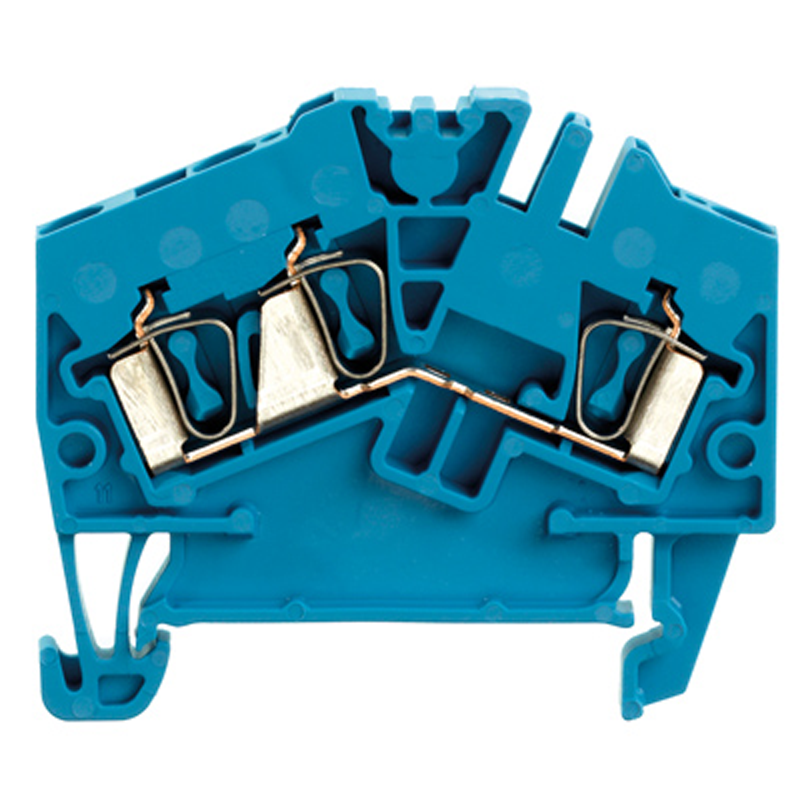

TERMINAL BLOCK ZDU 2,5-2 / 3 AN 800V / 24A /
Product code
1971460
Feed-through terminal block, tension clamp connection, 2.5 mm², 800 V, 24 A, number of connections: 3, number of levels: 1, number of potentials per tier: 1, Wemid, TS 35, blue This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve0.5-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5-2.5 mm²
Connectable conductor cross section solid-core0.5-4 mm²
Connectable conductor cross section multi-wired0.5 - 2.5 mm²
Rated current In24 A
Rated voltage800 V
Type of electrical connection 1Spring clamp connection
Number of levels1
Number of clamp positions per level3
Suitable for conductor materialCopper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-50-120 °C
Width5.1 mm
Height50.5 mm
Product codes
SAPANO108
STK1971460
PLC1971460
GTIN/EAN4008190915391
Manufacturer part number1706040000
Vendor material number1706040000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.016 l
Package weight0.007 kg
Base uniteach
Package units100
Package contents–
UNSPSC39121410
BrandWEIDMÜLLER
VendorWEIDMÜLLER SUOMI
