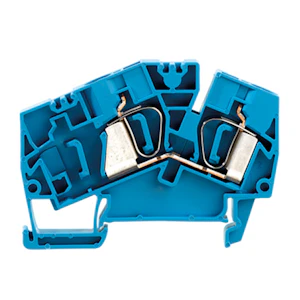

TERMINAL BLOCK ZDU 6-2 / 2 800V / 41A / 0,21
Product code
1971488
ZDU 6-2/2AN BL
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 6 mm²
Connectable conductor cross section solid-core0.5 - 10 mm²
Rated current In41 A
Rated voltage800 V
Type of electrical connection 1Spring clamp connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-50 - 120 °C
Inflammability class of insulation material according to UL94V0
Width59 mm
Height61 mm
Explosion-tested version 'Ex e'yes
Product codes
SAPANO119
STK1971488
PLC1971488
GTIN/EAN4032248143122
Manufacturer part number1771390000
Vendor material number1771390000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.021 l
Package weight0.009 kg
Base uniteach
Package units50
Package contents–
UNSPSC39121410
BrandWEIDMÜLLER
VendorWEIDMÜLLER SUOMI
