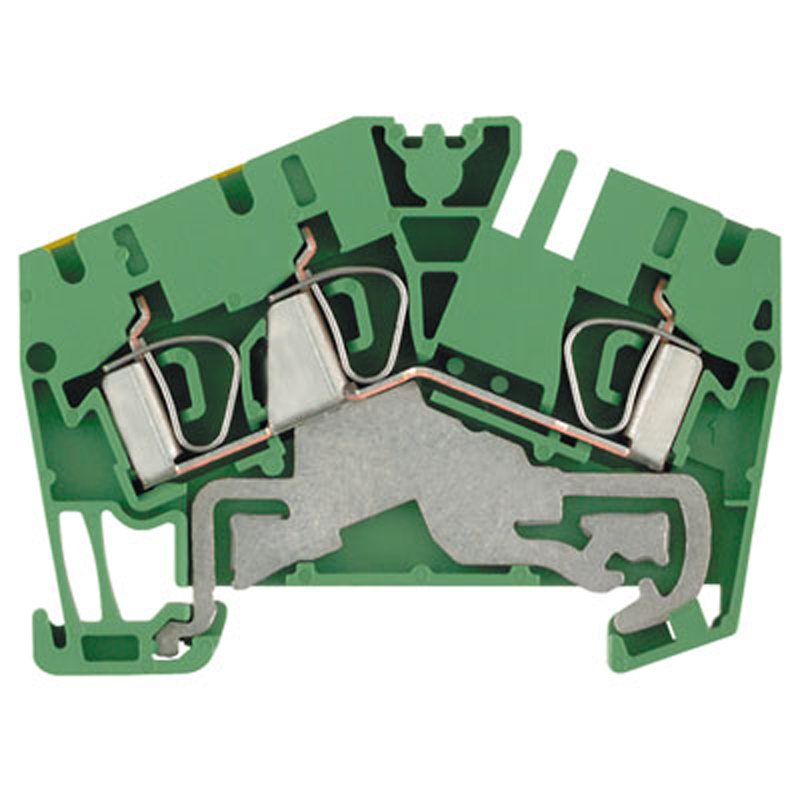

TERMINAL BLOCK ZPE 4-2 / 3 AN 800V / 0,13?6MM
Product code
1971548
ZPE 4-2/3AN
Product details
Technical specifications
Product class (ETIM)Ground terminal block (EC000901)
PEN function possibleno
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 4 mm²
Connectable conductor cross section solid-core0.5 - 6 mm²
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Other
Number of levels1
Number of clamp positions per level3
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-50 - 120 °C
Inflammability class of insulation material according to UL94V0
Width58.5 mm
Height52 mm
Closing plate requiredyes
Product codes
SAPANO144
STK1971548
PLC1971548
GTIN/EAN4032248142989
Manufacturer part number1770390000
Vendor material number1770390000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.021 l
Package weight0.016 kg
Base uniteach
Package units100
Package contents–
UNSPSC39121410
BrandWEIDMÜLLER
VendorWEIDMÜLLER SUOMI
