ETHERNET SWITCH ACCESSORY 1GE IN 60W/2GE OUT POE EXTEND

Product code
7419458

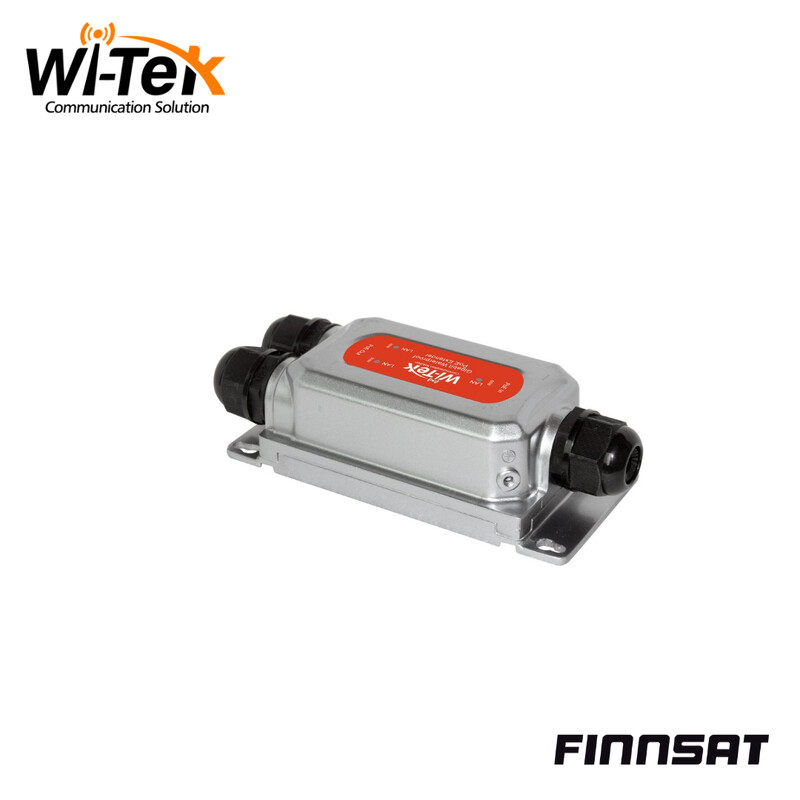

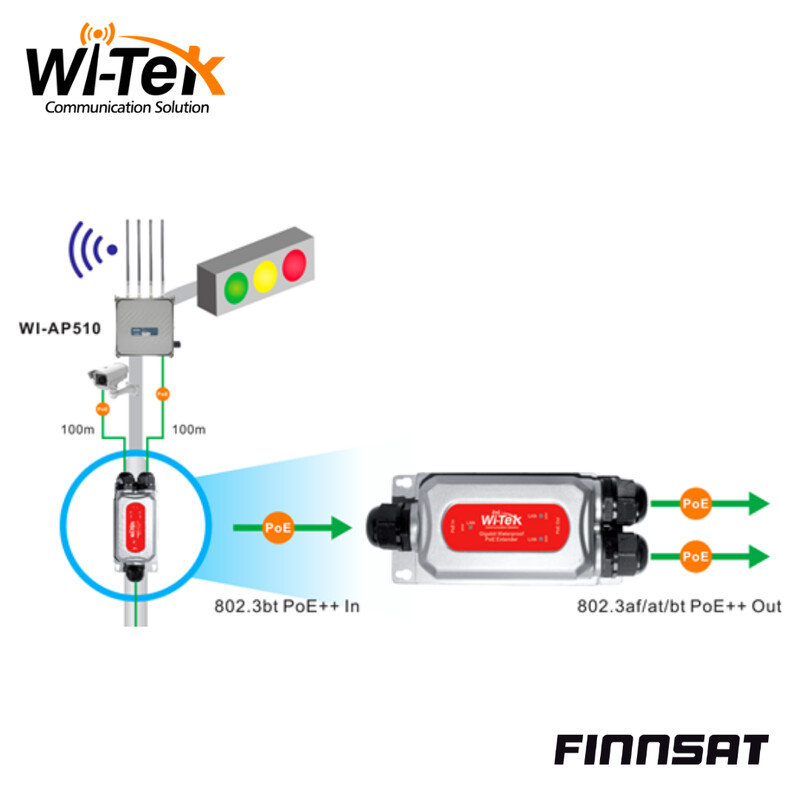

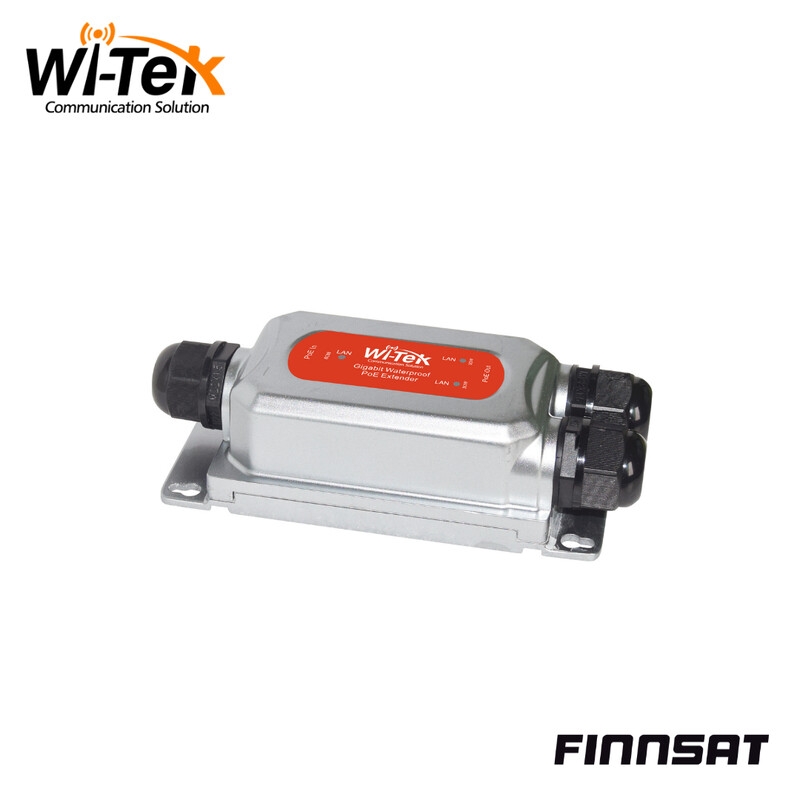

WI-PE21E-O PoE repeater is an IP68-rated PoE splitter with one gigabit input (60W) and two gigabit outputs (30W each). The WI-PE21E-O is specifically designed for PoE applications from a single point to multiple points, providing a simple solution to increase PoE ports without additional cabling and more flexible network extension without an external power source.

  • 1GE PoE input (802.3bt 60W)
  • 2GE PoE outputs (802.3af / 30W)
  • PoE output supports transmission over a 100m distance
  • All ports support full port speed and Jumbo-frame traffic
  • IP68-rated enclosure designed for outdoor installation
  • Level 4 protection (ESD, RS, EFT, CS)
  • Operating temperature -40??80?
  • IK10 explosion-proof aluminum enclosure
  • Plug and Play installation requires no configuration
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)PoE injector/splitter (EC003552)
Transmission standardGigabit Ethernet
PoE standard802.3 at (PoE+)
Max. PoE power60 W
Number of ports PoE2
Voltage typeDC
Input voltage48-48 V
Output current1150 mA
Mounting methodWall mount
Width73 mm
Height45 mm
Depth150 mm

Product codes

SAPDAD129
STK7419458
PLC7419458
GTIN/EAN6418296000491
Manufacturer part numberWI-POE21E-O
Vendor material numberWI-POE21E-O

Basic information

Package measurements (L x W x H)186 x 240 x 84 mm
Package volume3.75 l
Package weight0.8 kg
Base uniteach
Package units1 / 10
Package contents
UNSPSC43201814
BrandWI-TEK
VendorFINNSAT OY
