ETHERNET SWITCH ACCESSORY 2GE 1000MBPS POE INJECTOR

Product code
7419452
Wi-Tek WI-POE55-48V-60W is a 60W PoE injector that can supply power and data to a single PoE device up to 100 meters away.

The device supports PoE, PoE+, and Hi-PoE standards, and the 60W power output is sufficient even for power-hungry PTZ cameras.

Thanks to Power over Ethernet (PoE) technology, power can be delivered to various devices through existing Ethernet cables.

Common applications for PoE injectors include powering surveillance cameras, WiFi access points, and small displays.

With a PoE injector, you can place devices in locations where it would be difficult to run power cables, such as suspended ceilings. Using a PoE injector can reduce the number of cables and outlets in confined spaces.

Features

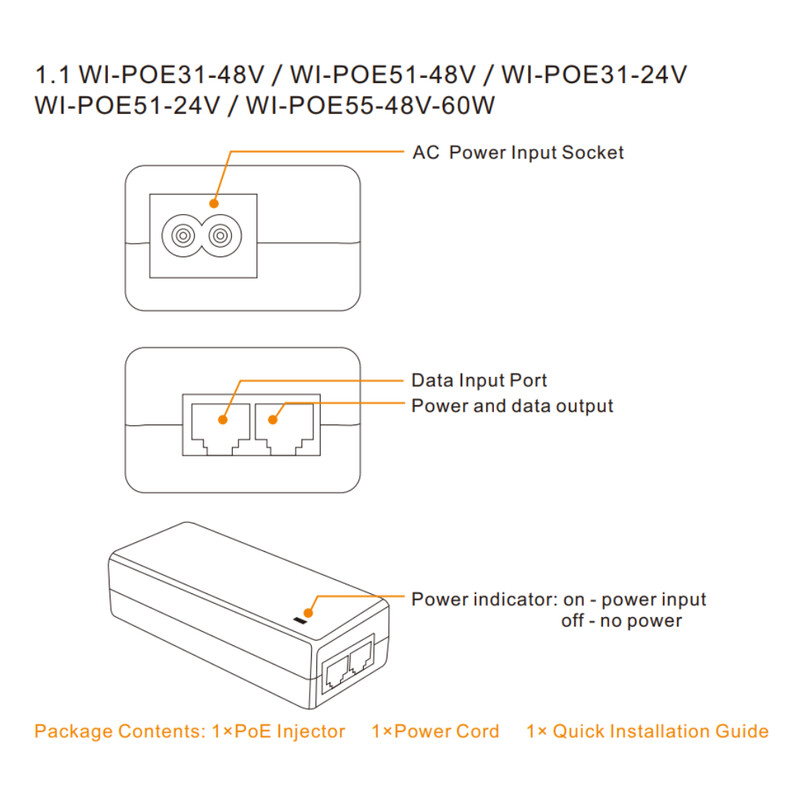

  • 1x 10/100/1000Mbps Ethernet Port
  • 1x 10/100/1000Mbps PoE RJ45 Port
  • 802.3 af/at/bt 60W PoE Out
  • PoE PIN order: 1/2/4/5(+) 3/6/7/8(-)
  • Surge protection: 6kV
  • Easy to install, Plug and play
  • AC IN 100-220V
  • Operating temperature -10°C~55°C
  • Package contents: PoE injector, power cable, quick start guide
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)PoE injector/splitter (EC003552)
Transmission standardGigabit Ethernet
PoE standard802.3bt (4PPoE)
Max. PoE power60 W
Number of ports PoE1
Voltage typeAC
Input voltage110-230 V
Frequency50-60 Hz
Output current1150 mA
Mounting methodFreestanding
Width50 mm
Height30 mm
Depth113 mm

Product codes

SAPDAD127
STK7419452
PLC7419452
GTIN/EAN6418296000873
Manufacturer part numberWI-POE55-48V-60W
Vendor material numberWI-POE55-48V-60W

Basic information

Package measurements (L x W x H)130 x 205 x 42 mm
Package volume1.119 l
Package weight0.47 kg
Base uniteach
Package units1 / 50
Package contents
UNSPSC43201814
BrandWI-TEK
VendorFINNSAT OY
