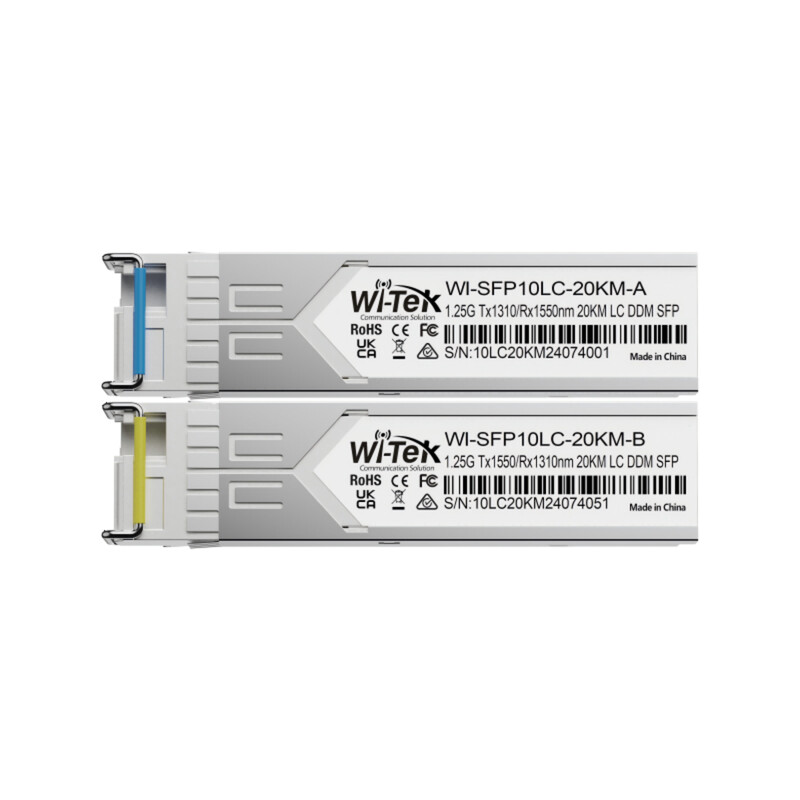

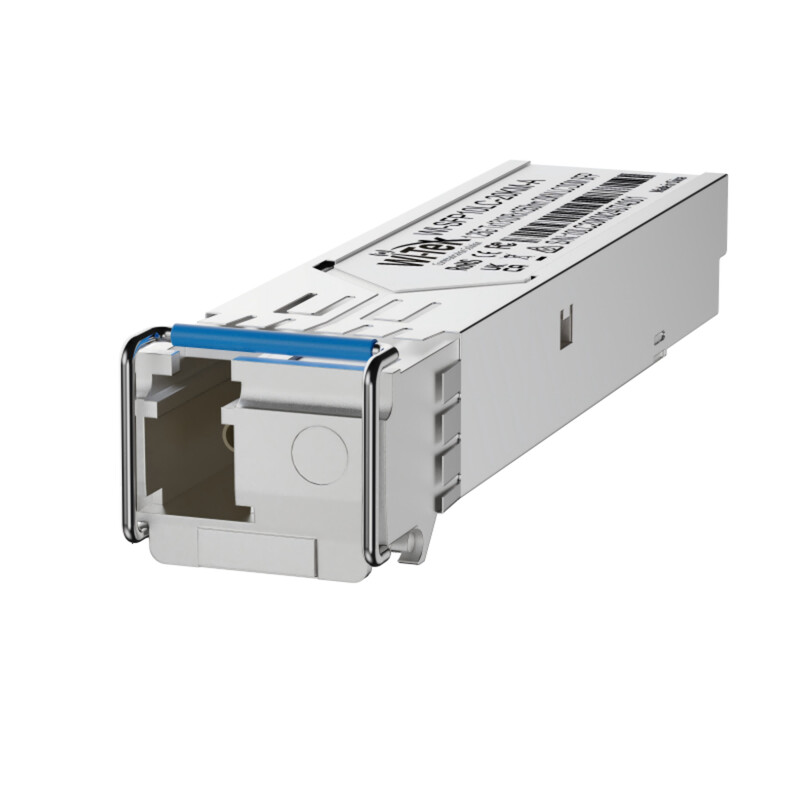

ETHERNET SWITCH ACCESSORY SFP TX/RX 20KM LCUPC SINGLE SM

Wi-Tek SFP modules convert electrical signals to optical. Optical transceivers are designed to extend transmission distance. When connected, for example, to a switch or fiber media converter, they can extend the existing network by several kilometers or even tens of kilometers. SFP modules operate flawlessly even at high speeds and varying temperatures, and the fiber connection is interference-free.

This SFP module is specifically designed for expanding network connections. It is suitable for use in local area networks (LAN), fiber to the home (FTTH) solutions, and other long-distance network environments.

Features

• 20KM 1.25Gbps single module single fiber transceivers
• Data Rate: 1.25 Gbps – optimal speed for efficient network traffic
• Distance: Maximum reach up to 20 km over single-mode fiber (SMF).
• Tx1310nm/Rx1550nm and Tx1550nm/Rx1310nm FP/DFB SFP
• Duplex LC connector
• Compatibility: Supports IEEE 802.3z protocol and SFP MSA standard
• Digital Diagnostic Monitoring (DDM): Provides real-time information on temperature, voltage, and optical power.
• Hot-Pluggable: The module can be installed or removed without shutting down the system.
