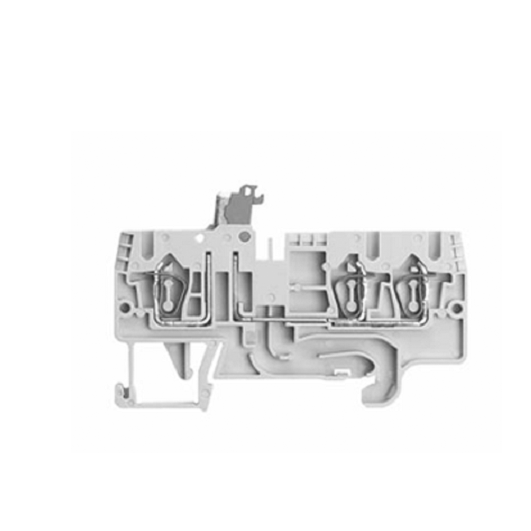

DISCONNECT TERMINAL 2,5MM WKFN 2,5TKM/35
Product code
9140027
No product description available.
Product details
Technical specifications
Product class (ETIM)(Knife) disconnect terminal block (EC000902)
Connectable conductor cross section fine-strand without cable end sleeve0.2-2.5 mm²
Connectable conductor cross section solid-core0.14-4 mm²
Rated current In20 A
Rated voltage630 V
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of levels1
Number of clamp positions per level2
Internally connected stagesno
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Inflammability class of insulation material according to UL94V0
Operating temperature-40-55 °C
Closing plate requiredyes
ColourGrey
Product codes
SAPADR190
STKADR190
PLC9140027
GTIN/EAN4015573834651
Manufacturer part number56.703.5355.0
Vendor material number56.703.5355.0
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.017 l
Package weight0.008 kg
Base uniteach
Package units100
Package contents–
UNSPSC39121409
BrandWIELAND
VendorCABLEX OY
