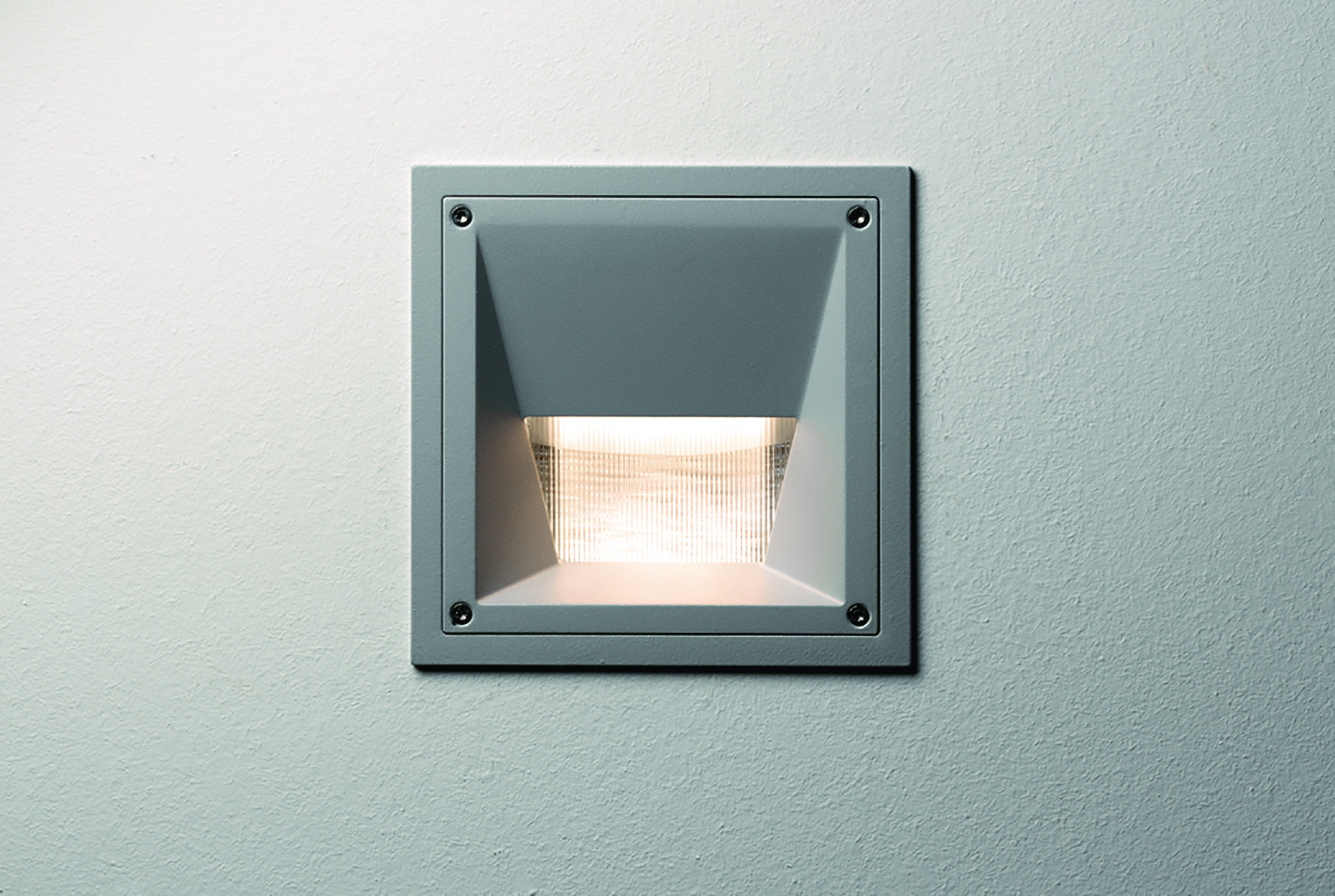

OUTDOORS WALL/CEILING LUMINAIR NIGHTPATH LED 5X3W WW CONCR BL

Nightpath is a wall-mounted or pole-mounted LED light source. The reflector system provides an exceptionally wide and uniform light distribution, allowing the luminaires to be installed at greater distances from each other. The luminaire bodies are compact in size and offer the advantage of extremely low mounting depth. An optional impact-resistant polycarbonate glass is available, making the luminaire impact-resistant. For outdoor lighting recommendations for pedestrian paths and entrances, the average illuminance is 1 lux. With Nightpath luminaires, this requirement can be met when the luminaires are installed 6 m apart (light source height from ground: 0.8 m). Additionally, with the LED luminaire, 1 lux illuminance is achieved 6 m in front of the luminaire when the luminaires are installed approximately 6 m apart. Application: Lighting of pedestrian paths beside walls, courtyard lighting, entrance drive lighting. Construction: The luminaire body is made of cast aluminum with a polyester powder coating. Asymmetric optics feature pure bright anodized aluminum. The lens is prismatic tempered glass, secured with stainless steel screws and silicone seals. IP65, IK08 (with optional polycarbonate cover 123 0 270 000, IK10). Weight: 2.0 kg. Installation: The luminaire can be recessed into hollow walls or concrete walls. Additionally, it can be surface-mounted. For the hollow wall model, stainless steel wall brackets are provided to mount the luminaire to hollow walls (wall thickness 9-55 mm), with an installation opening of 165 x 165 mm. For the concrete wall model, first install the mounting enclosure 123 0252 000 into the wall, then mount the luminaire onto it. For the surface-mounted model, a powder-coated aluminum surface mounting enclosure is included with the luminaire. Wiring: Two cable entries. Wiring: 3x2.5 mm². Built-in LED driver. An LED replacement module is also available. This product description is an automated translation of the original Finnish description.
