CIRKULATIONSPUMP VVC WILO STAR-Z 20/7-150 1-FAS
Product code
4623249
This circulation pump is suitable only for drinking water. The Wilo Star-Z is a circulation pump for domestic hot water, a wet rotor pump with manual three-speed switching for pipe installation.
The pump has a motor with thermal protection. The pump housing is made of bronze, the impeller of glass fiber-reinforced plastic, and the shaft is ceramic with carbon bearings impregnated with resin.
Features
- maximum allowable operating pressure PN 10 bar

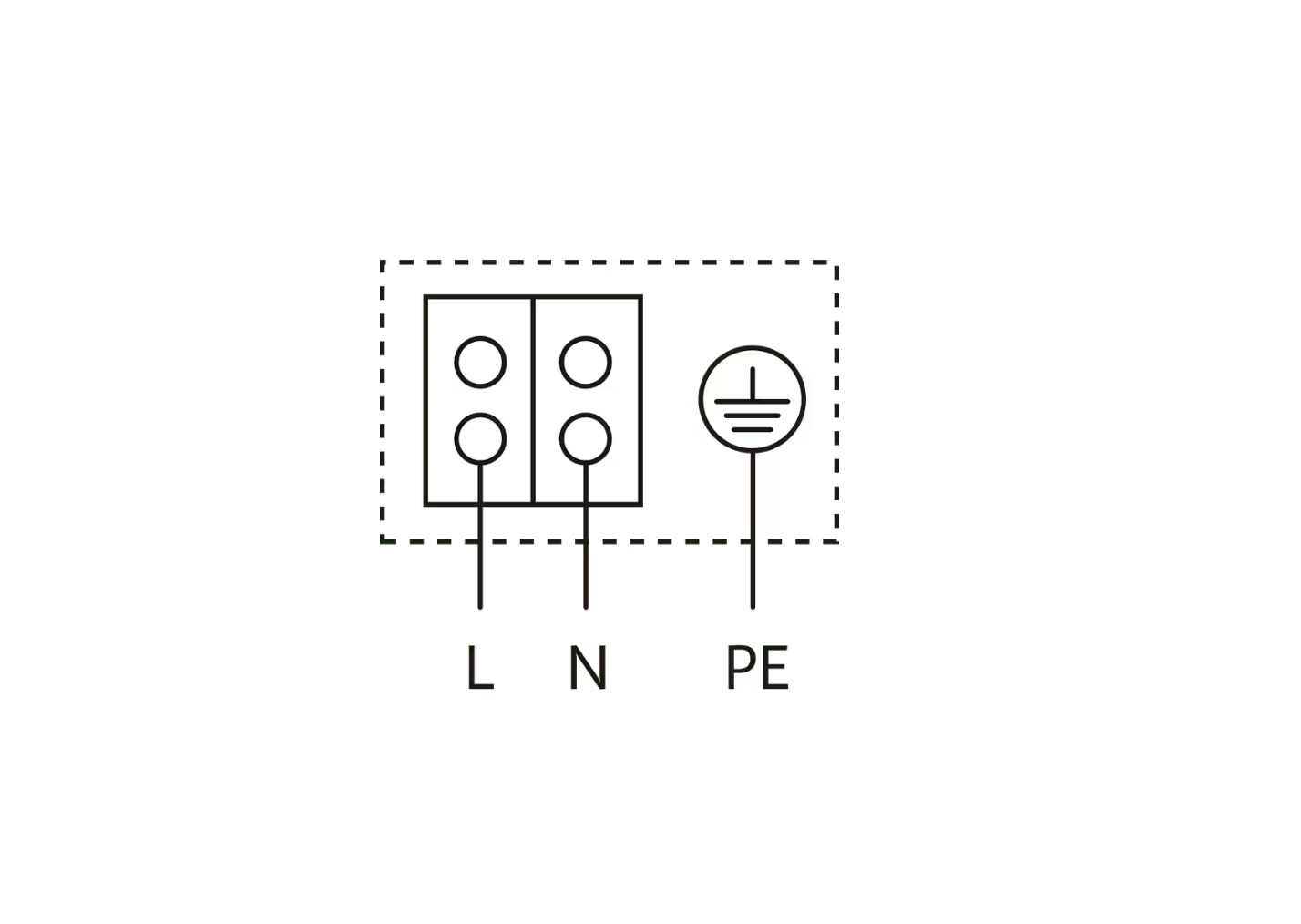

- power connection 1~230 V, 50 Hz
- motor protection class IP44
- suction side pipe connection G 1½
- pressure side pipe connection G 1½

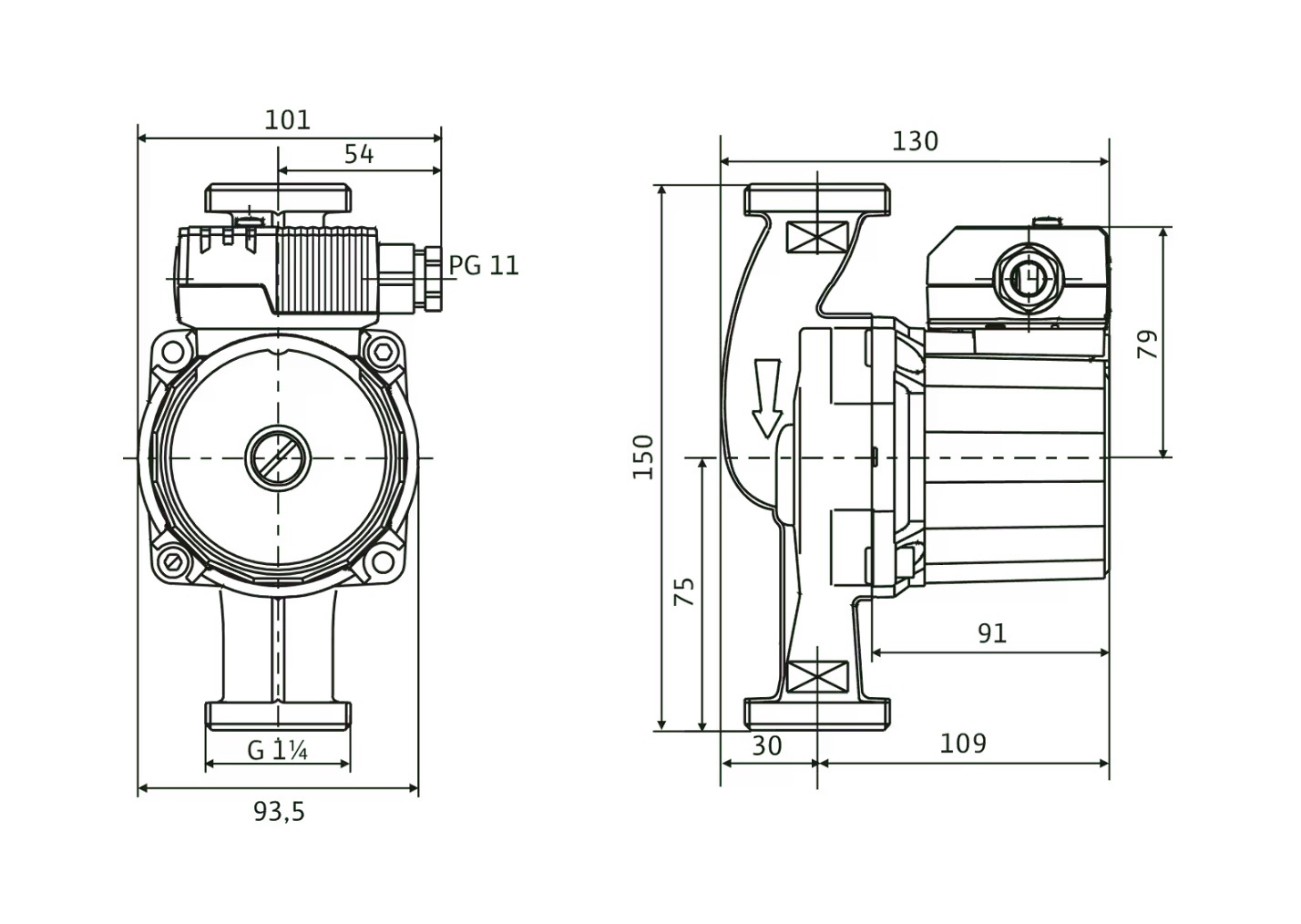

- installation length 150 mm
Product details
Technical specifications
Product class (ETIM)Built-in circulation pump (EC010980)
Material pump casingBronze
Material quality pump casingBronze (Rg 5)
Material impeller/pump wheelPolypropylene (PP)
Material quality impeller/pump wheelPP-GF
Volume flow rate (BEP)3.218 m³/h
Discharge head at flow rate (BEP)38.07 kPa
Max. discharge flow6.04 m³/h
Max. static height6.019 m
Max. operating pressure10 bar
Double pumpno
Electrical connectionTerminals
Number of phases1
Frequency50 Hz
Nominal current0.65 A
Motor power input (P1) per motor0.15 kW
Product codes
SAPAPS099
HPAC4623249
PLC4623249
GTIN/EAN4016322698067
Manufacturer part number4081203
Vendor material number4081203
Basic information
Package measurements (L x W x H)200 x 150 x 150 mm
Package volume4.5 l
Package weight3.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC40151510
BrandWILO
VendorWILO FINLAND OY
Documents (10)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)24.48
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000435
