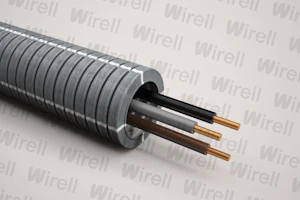

PREWIRED CABLE-HF 20HF-A 3x1,5 L HF R100 Dca

The product is a 3442 class (750N) concrete pour approved halogen-free 20 mm conduit. The product is manufactured from PP plastic. A flexible, self-recovering, flame-retardant LSZH classified electrical installation conduit. The conduit is gray in color. Pre-installed inside the conduit are halogen-free ML (H07Z1-U) Dca 3x1.5 mm2 conductors. The conduit also features a continuous meter marking. The Aalto series conduit can be installed in concrete pours. The conduit has a standard corrugated structure with a profile designed for low friction and suitability for installation in ducts. In overhead structures, the conduit slides more easily and does not cause additional friction or wear issues with vapor barrier membranes. The product does not produce toxic gases or smoke in fire conditions. The conduit is LSZH classified and suitable for public construction needs. The standard packaging size is a 100-meter coil. The conduit complies with the following standards:

• IEC/EN 61386–22
• IEC/EN 61386–23
• IEC 61034-2 EN 50267-1
• EN 50267-2-3 PBDPO free, environmentally friendly Low Smoke Zero Halogen (LSZH).

This product description is an automated translation of the original Finnish description.
