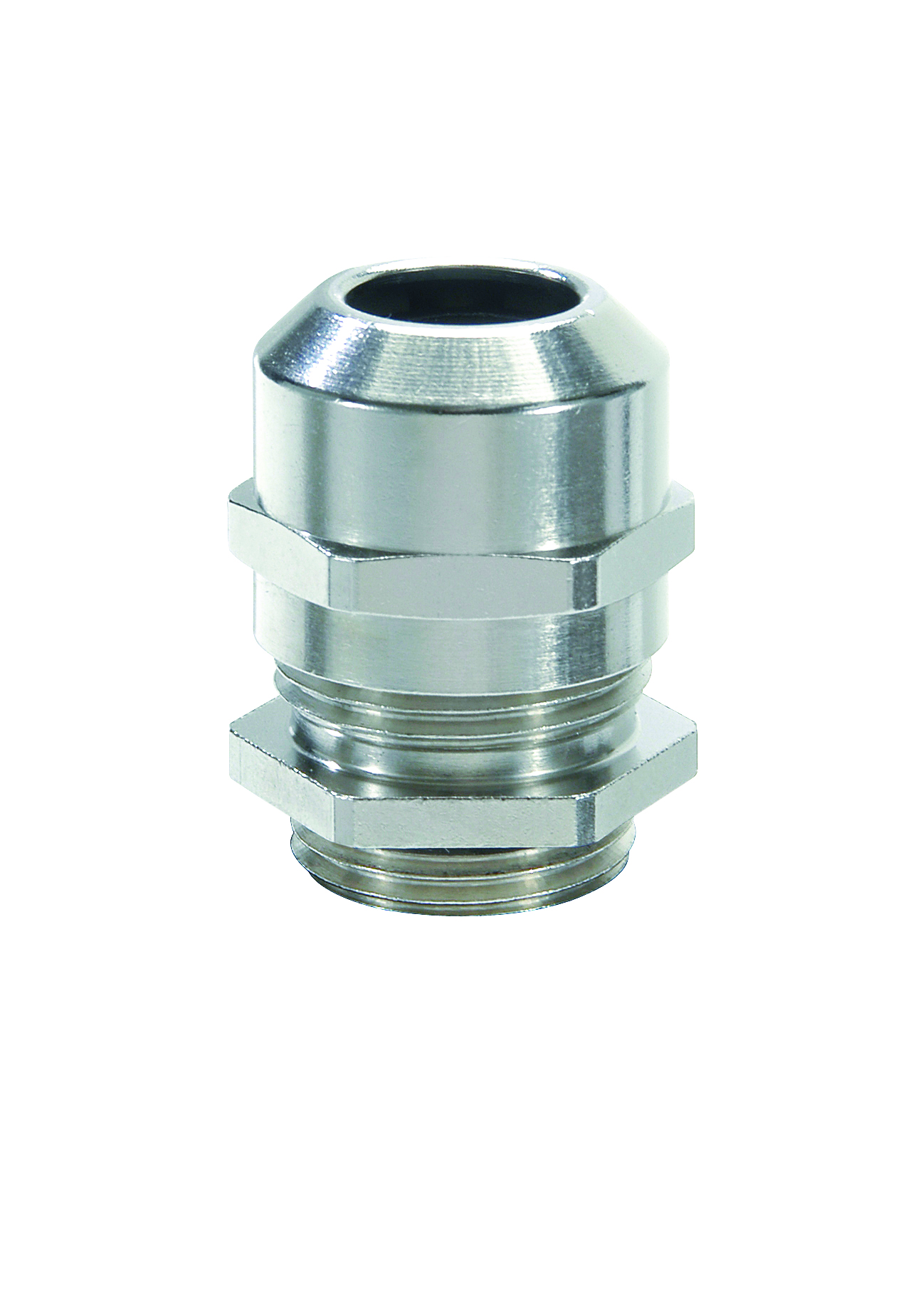

CABLE GLAND METAL EMSKV M16-20 IP68 6-13
Product code
10101939
Cable gland EMSKV M16-20, thread M16x1.5, IP68 with water drainage. Cable diameter 6-13 mm. Material nickel-plated brass, seal EPDM. IP rating IP68, 5 bar for 30 minutes. Halogen-free. Temperature range -40 °C…+100 °C. EN 50262. The cable gland is vibration-resistant and has excellent water drainage properties as well as a wide temperature and cable range. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable gland (EC000441)
Connection type to housingScrewing
Thread typeMetric
Nominal thread size metric/PG16
Pitch thread1.5 mm
Thread length5 mm
Wrench width24 mm
Hexagon angular dimension65 mm
Suitable for cable diameter6 - 13 mm
MaterialMetal
Material qualityBrass
Surface protectionNickel-plated
Halogen freeyes
Glass-fibre reinforcedno
Degree of protection (IP)IP68
Shock resistantyes
Product codes
SAPASU924
PLC10101939
GTIN/EAN4007685042383
Manufacturer part number10101939
Vendor material number10101939
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.045 l
Package weight0.042 kg
Base uniteach
Package units50 / 600
Package contents–
UNSPSC39121311
BrandWISKA
VendorWISKA HOPPMANN GMBH
Documents (5)
Certificates
Brochures & documents
Links
Environment and safety
Manufacturer
NameWISKA Hoppmann GmbH
Websitehttps://www.wiska.com/
Postal addressKisdorfer Weg 28, 24568 Kaltenkirchen, Germany
