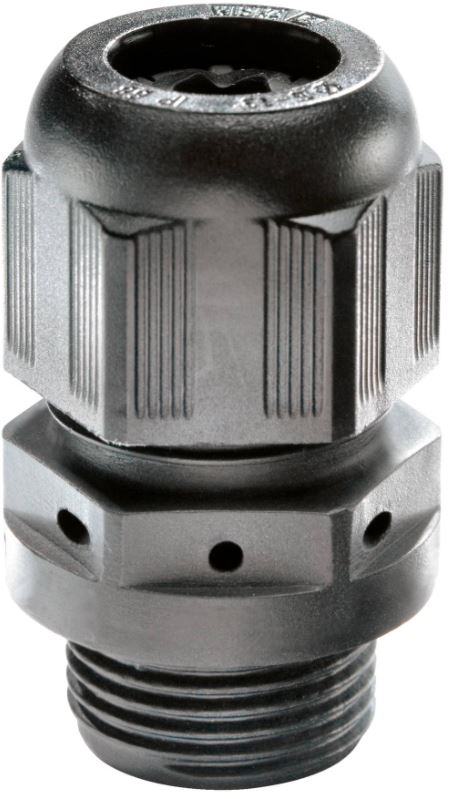

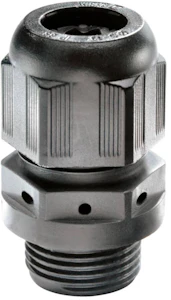

CABLE VENTGLAND PLASTIC ESVG M32 IP68 RAL9005 13-21
Product code
10100802
A breathing shaft seal is a solution to the condensation water problem. By using breathing shaft seals, the pressure inside the housing equalizes with the external environment pressure, eliminating pressure differences between the inside and outside of the housing. Condensation water formation can be minimized. A breathing shaft seal helps reduce electrical failures and costly repair costs caused by condensation water. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable gland (EC000441)
Connection type to housingScrewing
Thread typeMetric
Nominal thread size metric/PG32
Pitch thread1.5 mm
Thread length12 mm
Wrench width36 mm
Hexagon angular dimension40 mm
Suitable for cable diameter13 - 21 mm
MaterialPlastic
Material qualityPolyamide (PA)
Surface protectionUntreated
Halogen freeyes
Glass-fibre reinforcedno
Degree of protection (IP)IP68
Shock resistantyes
Product codes
SAPCCB062
PLC10100802
GTIN/EAN4007685047302
Manufacturer part number10100802
Vendor material number10100802
Basic information
Package measurements (L x W x H)100 x 36 x 105 mm
Package volume0.378 l
Package weight0.035 kg
Base uniteach
Package units1 / 100
Package contents–
UNSPSC39121311
BrandWISKA
VendorWISKA HOPPMANN GMBH
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Manufacturer
NameWISKA Hoppmann GmbH
Websitehttps://www.wiska.com/
Postal addressKisdorfer Weg 28, 24568 Kaltenkirchen, Germany
