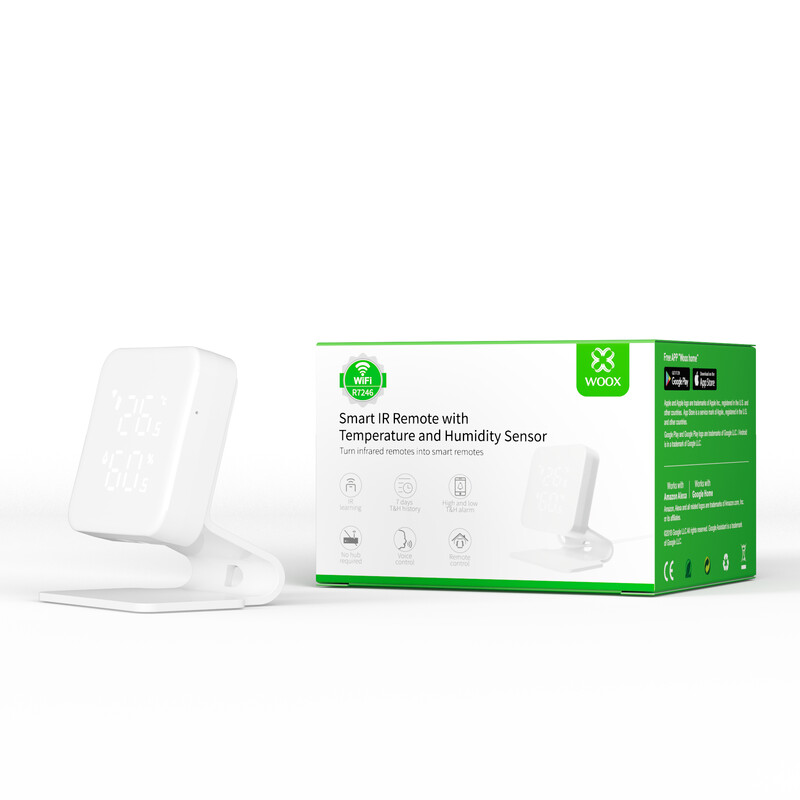

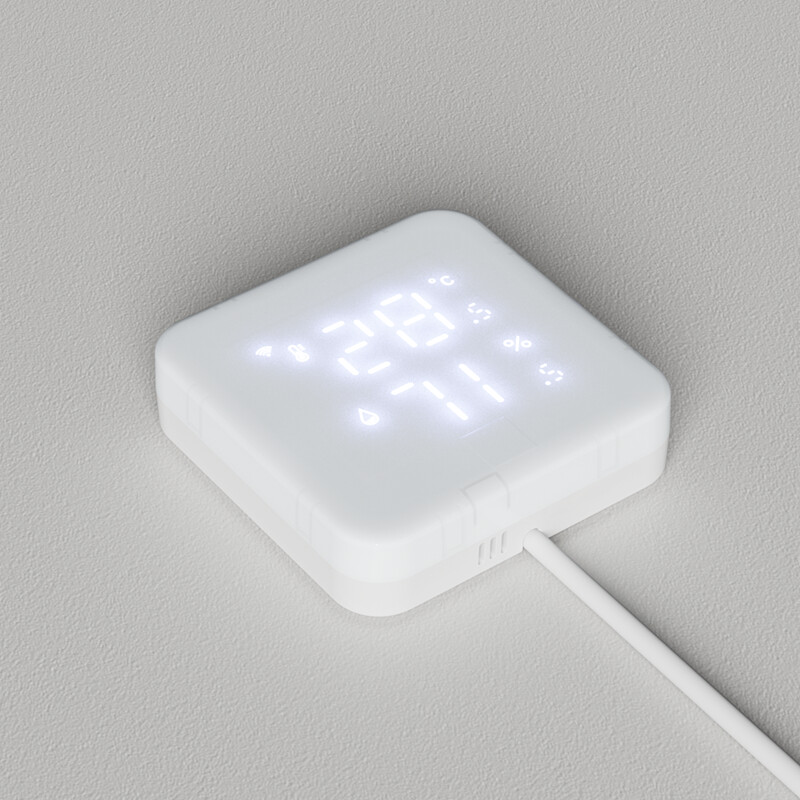

SENSOR SMART HUMIDITY AND TEMPERATURE

WOOX-R7246 is a compact and intelligent IR remote control with an integrated temperature and humidity sensor. It is the ideal companion for a comfortable and healthy home. The IR remote control function combines multiple infrared remotes into this single intelligent device. The integrated temperature and humidity sensors detect temperature and humidity data every 5 seconds and upload it to the WOOX Home app. You ensure that both humidity and temperature inside your home or office remain at healthy levels.

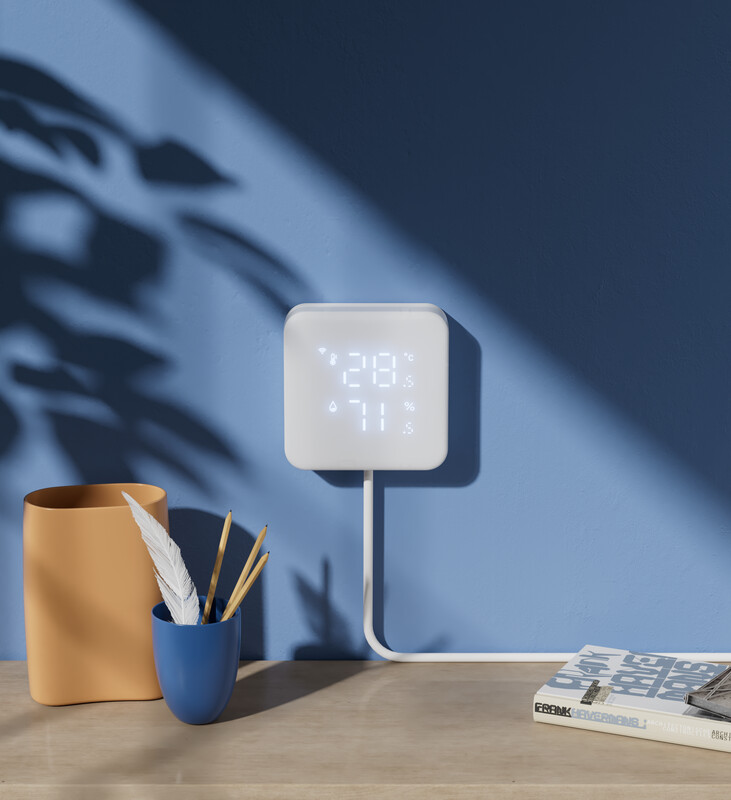

The WOOX-R7246 comes with an easy-to-install, sturdy mounting bracket, allowing you to place the R7246 on any flat surface. The package also includes a metal plate with 3M tape, enabling you to mount the R7246 on a wall, device, or any other location even without the bracket.

The WOOX-R7246 is powered by the included USB-C cable (150 cm), which you can connect to a USB-C wall adapter compatible with any power outlet.

Use WOOX’s intelligent IR remote control with integrated temperature and humidity sensor via your home WiFi network without requiring a separate hub or paid subscription service. Setup is extremely simple.

The WOOX-R7246 works with Amazon Alexa and Google Home voice control devices.

Packaging includes:

• R7246
• USB Type-C cable 150 cm
• Reset pin x 1
• Mounting plate with 3M tape
• USB-C wall adapter
• Multi-language user manual

Technical specifications:

• Product dimensions: 70*70*18.5 mm
• Net weight: 220 grams
• USB-C power cable length: 1.5 m
• Enclosure material: PC housing + ABS base support
• Enclosure color: White
• Flammability rating: UL94 V-2
• Protection rating (IP): IP20
• Number of infrared LEDs: 6
• Main control chip: GD32E230F8V6
• WiFi module: CBU (2.4G WiFi + Bluetooth)
• Wireless WiFi frequency: 2412 MHz ~ 2472 MHz
• Wireless standard: Wi-Fi IEEE 802.11 b/g/n
• Bluetooth frequency: 2400 MHz ~ 2483.5 MHz
• Bluetooth version: 5.2, Antenna gain (dBi): 2.21 dBi
• Power supply: DC 5V/1A
• Power consumption: 0.2W in active mode, 0.1W in standby mode (display off)
• Temperature accuracy via app: ±0.3°C
• Display temperature accuracy: 0.5°C
• Humidity accuracy via app: ±3% RH
• Display humidity accuracy: 0.5%
• Measurement interval: every 5 seconds
• Infrared frequency: 0-455 KHz
• IR control distance: Horizontal?8m, Directly toward device?10m (environment affects)
• IR learning distance: Directly toward device?30mm, Angle ±45° (environment affects)
• IR database: Remotec
• Operating temperature: 0°C ~ 40°C
• Operating humidity: 0 ~ 99% RH (no condensation)
• Display brightness control: On/Off switch
• Temperature unit: °C / °F
• Temperature alert support
• Humidity alert support
• DIY mode support
